Review: Mazda DJ Mazda2 hatch (2014-on)

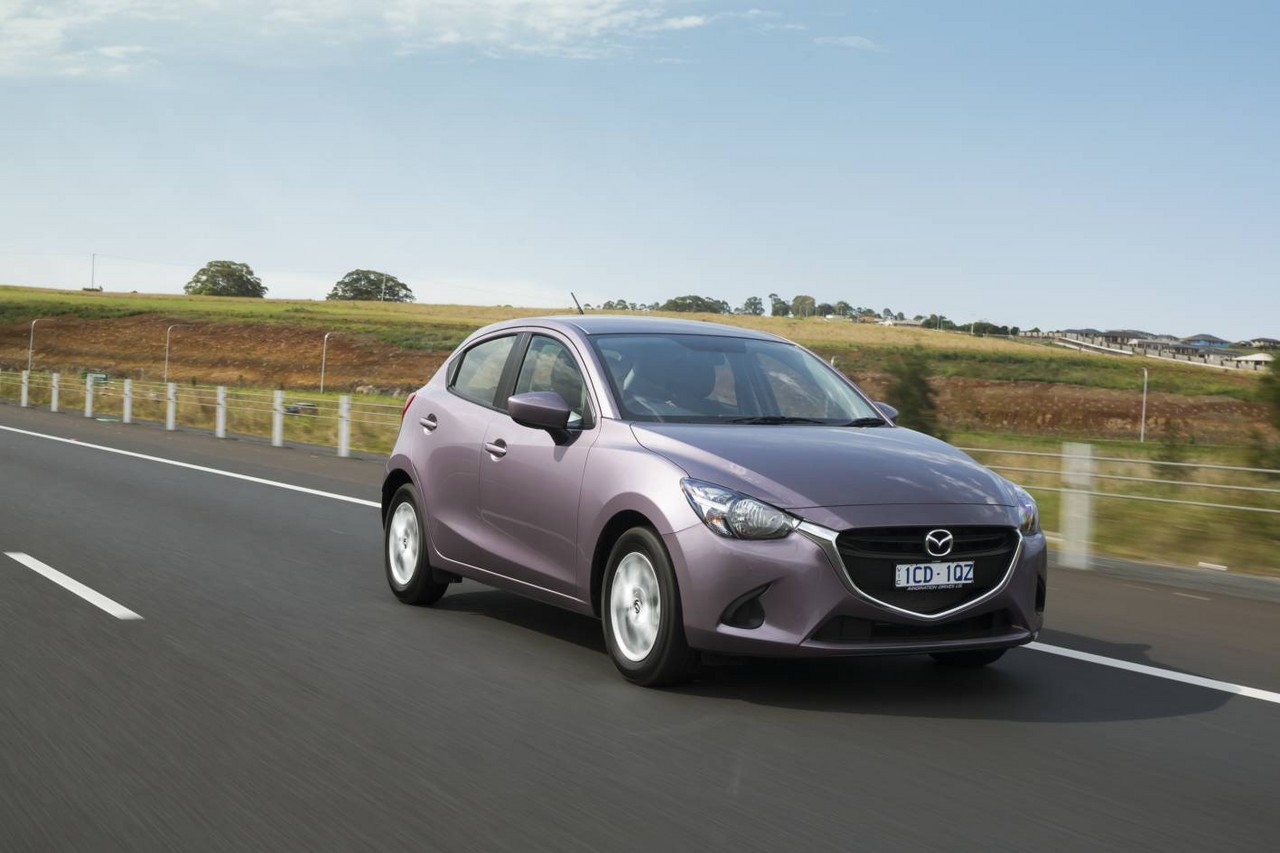

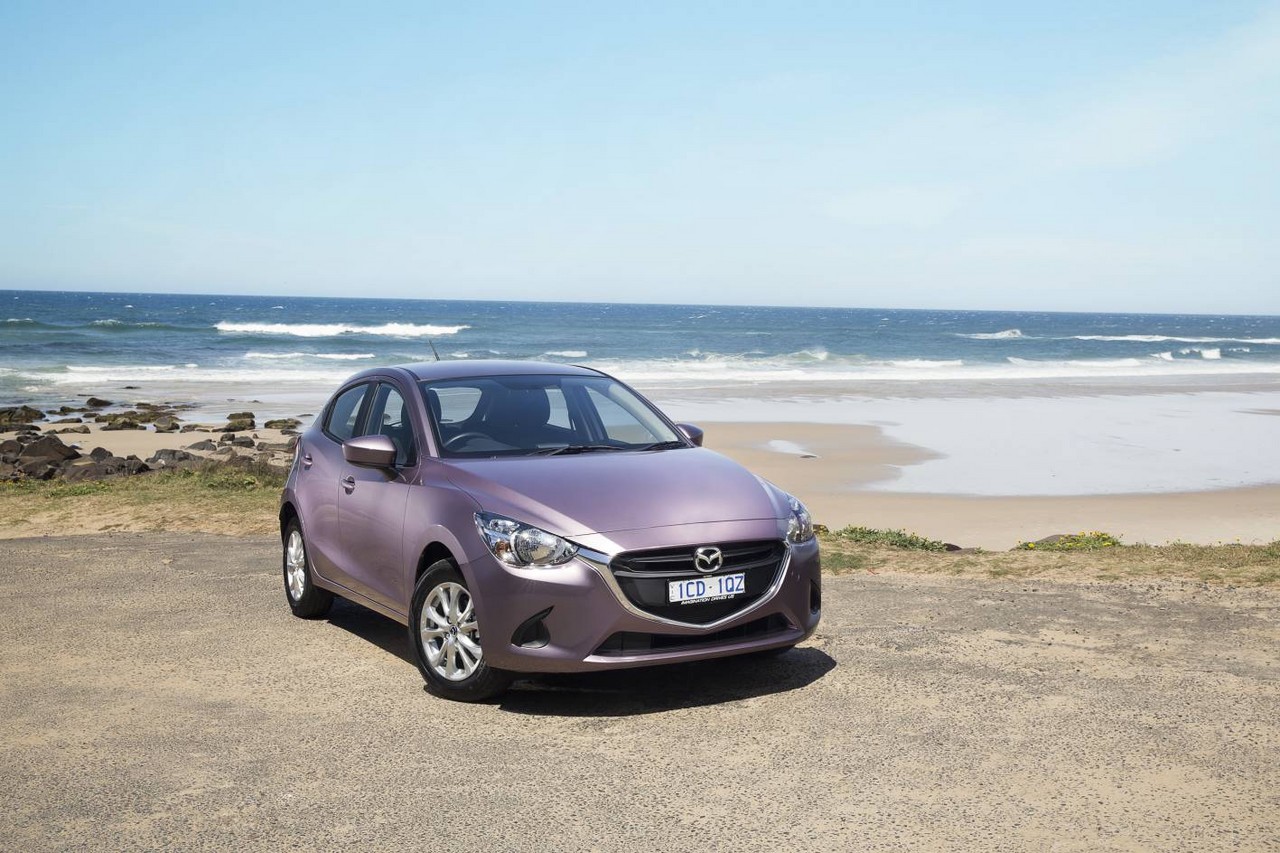

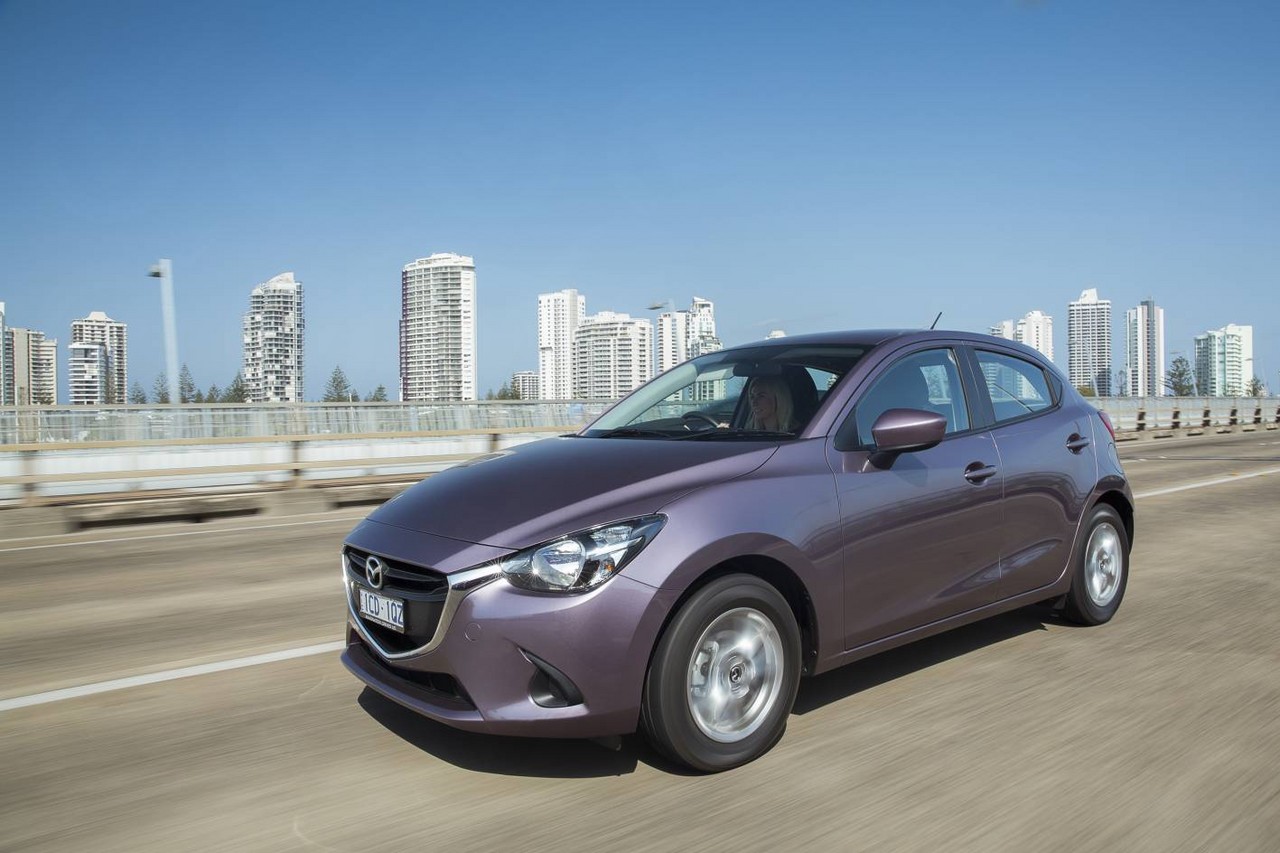

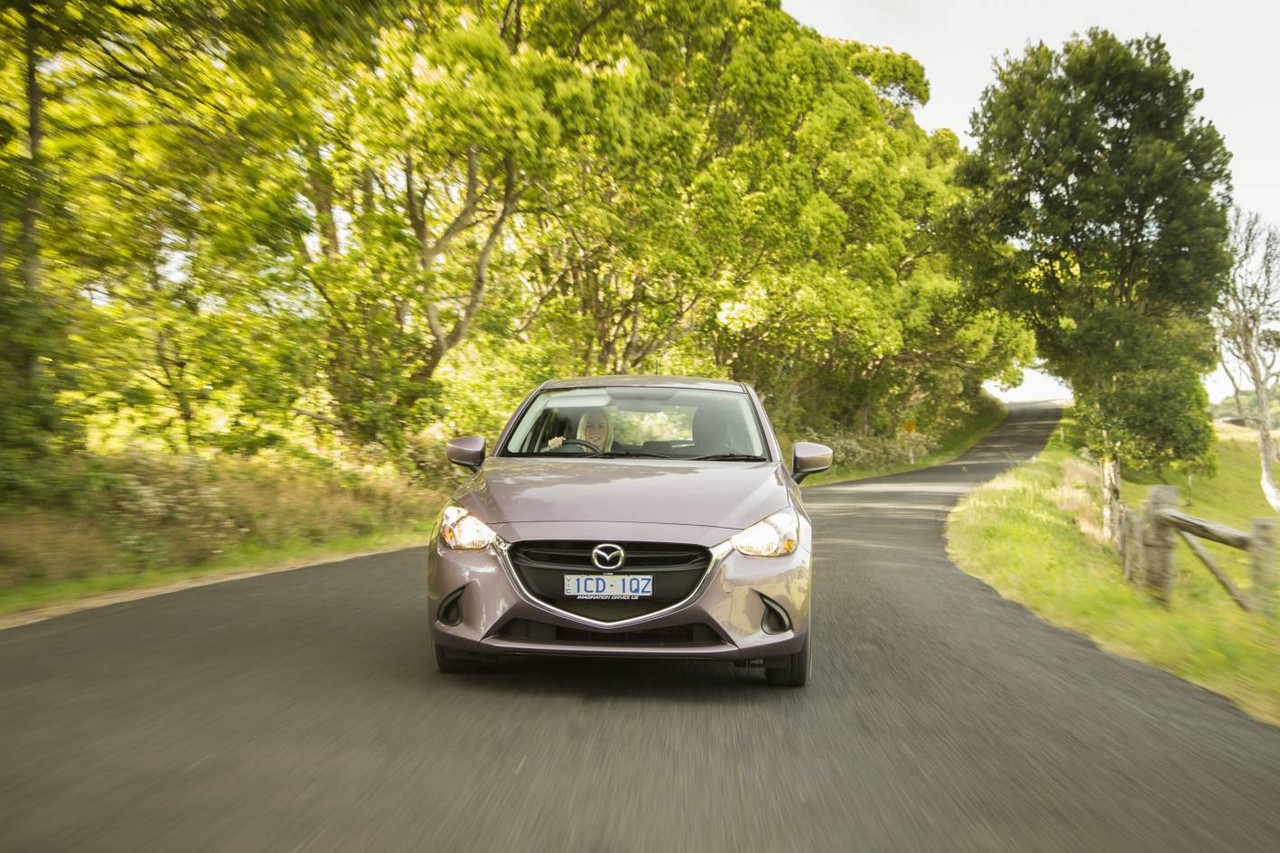

Review: Mazda DJ.I Mazda2 hatch (2014-17)

Overview

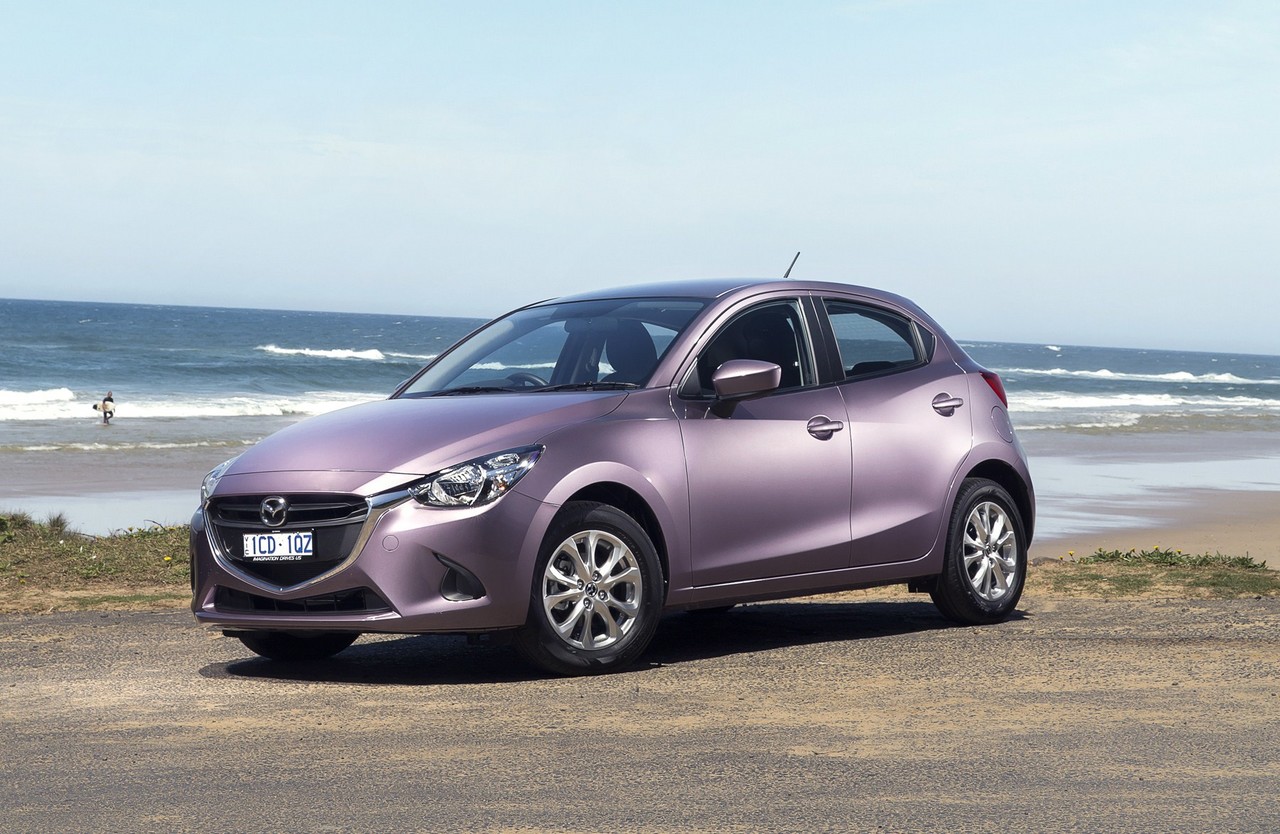

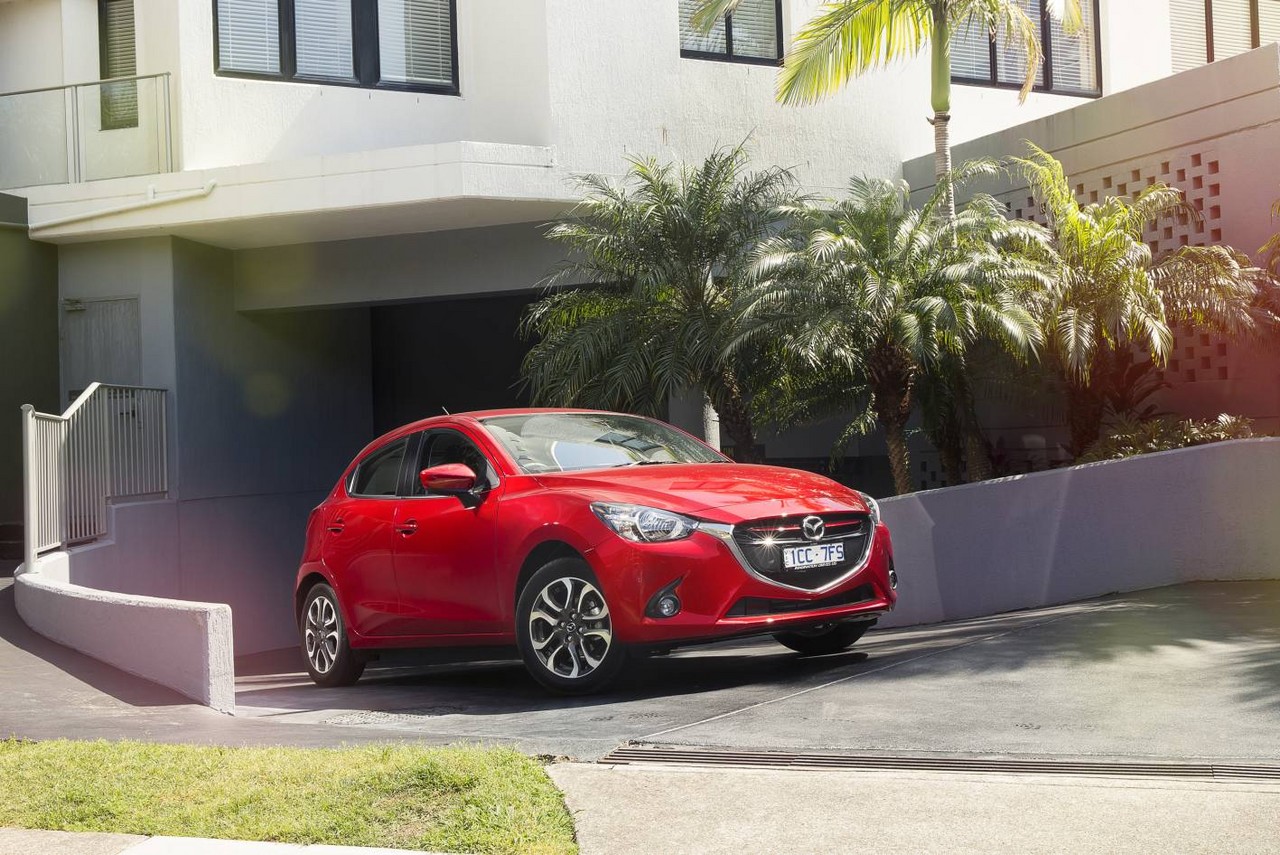

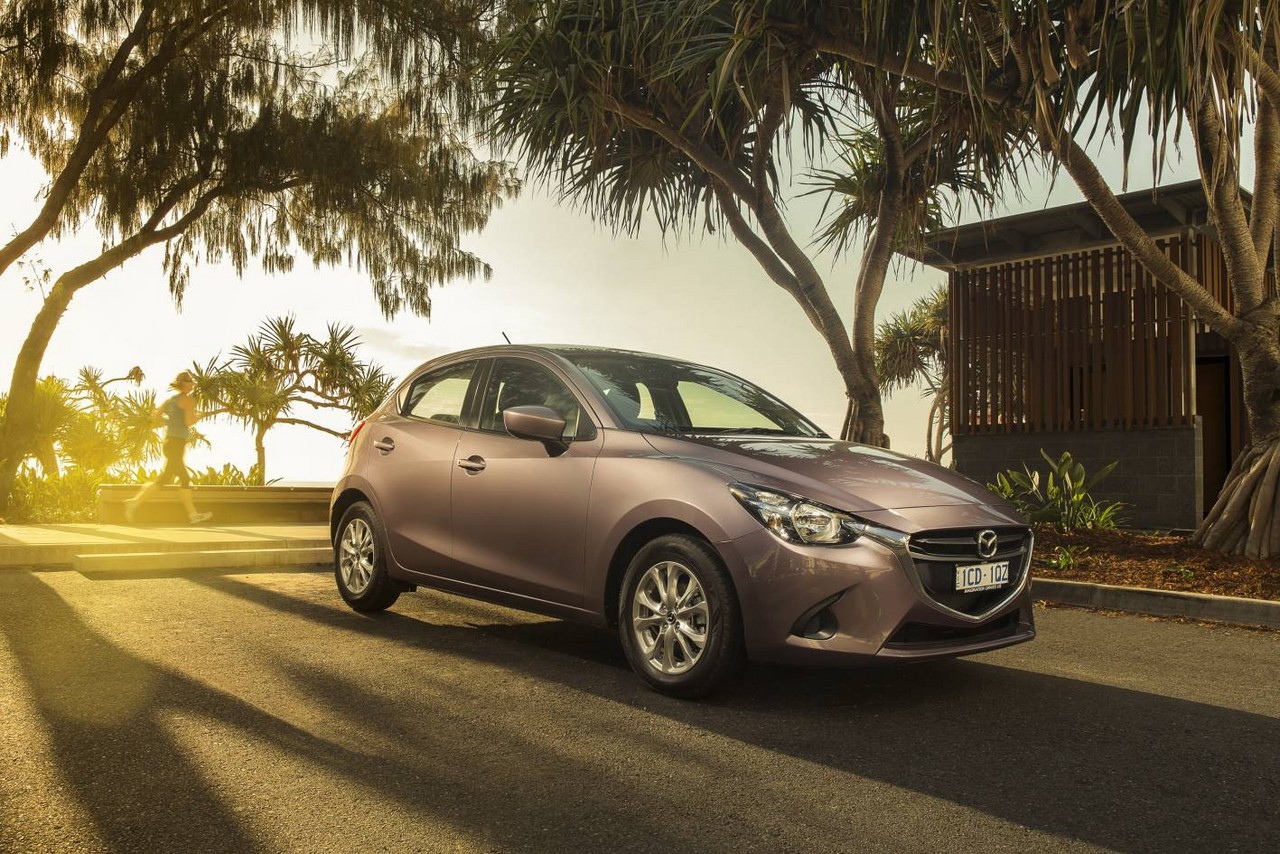

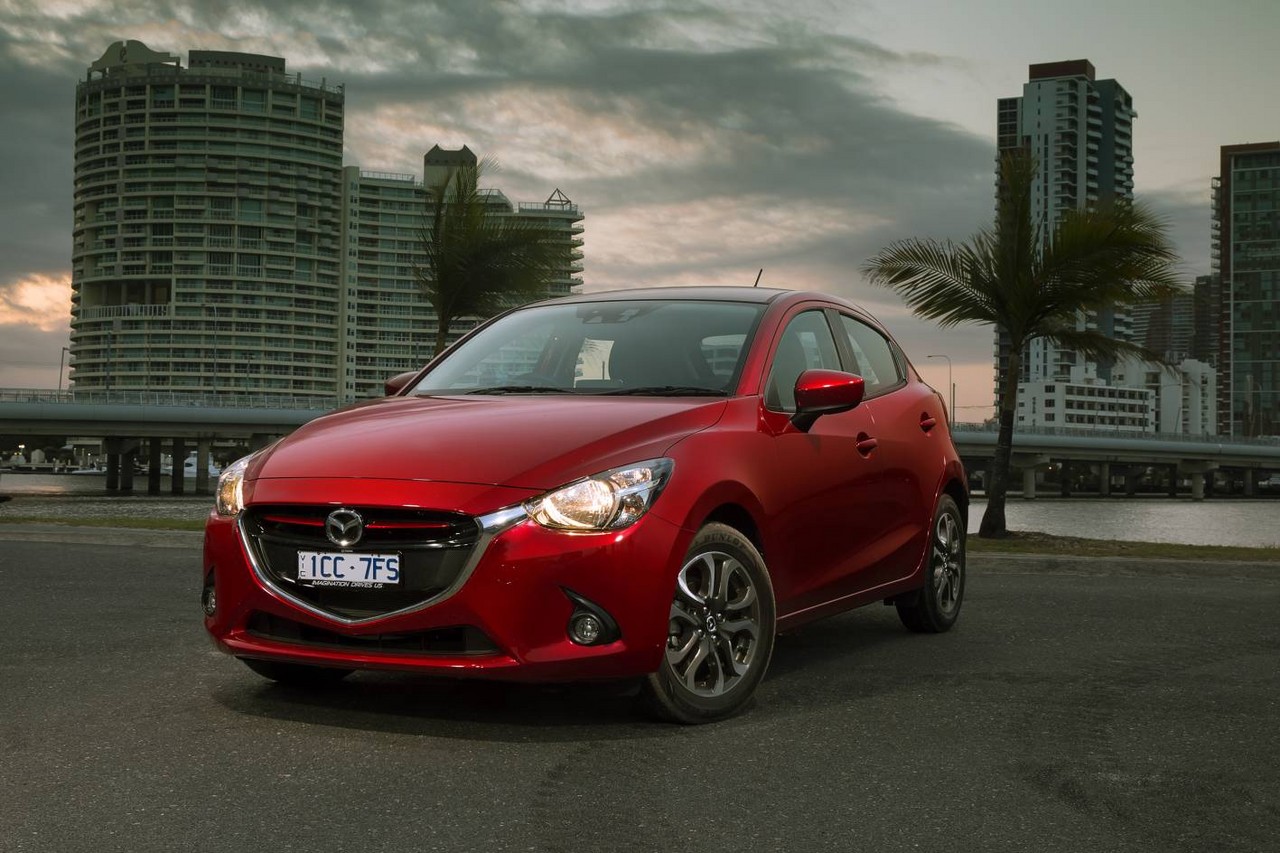

Released in Australia in October 2014, the Mazda DJ Mazda2 was as a light, five-door hatchback. Manufactured in Thailand (for Australian-delivered vehicles), the front-wheel drive DJ Mazda2 was available with a 1.5-litre ‘SkyActiv-G’ four-cylinder petrol engine that was mated to either a six-speed manual or automatic transmission. As per the table below, the Mazda2 range consisted of Neo, Maxx and Genki variants.

The Mazda DL Mazda2 sedan was released in August 2015; it has been reviewed separately.

SkyActiv-G engines and transmissions

The 1.5-litre SkyActiv-G four-cylinder petrol engines had aluminium blocks and cylinder heads, electronic direct petrol injection, double overhead camshafts, four valves per cylinder, and a maximum engine speed of 6800 rpm. For the DJ Mazda2, the SkyActiv-G engine was offered in two forms:

• For the Mazda2 Neo, the standard output V-P5 engine had oil intake sequential valve timing (‘SVT’), a 4-1 exhaust system and compression ratio of 12.0:1; and,
• For the Mazda2 Maxx and Genki, the high output F-P5 engine had electric intake sequential valve timing, oil exhaust sequential valve timing, a 4-2-1- exhaust system, an electric oil pump, a compression ratio of 13.0:1 and an ‘i-stop’ function that enabled the engine to shut down when the vehicle was stationary in traffic.

The SkyActiv-G engine was mated to six-speed ‘Skyactiv-Drive’ automatic and ‘Skyactiv-MT’ manual transmissions.

Body and dimensions

The Mazda DJ Mazda2 hatch was underpinned by Mazda’s ‘Skyactiv-Body’ which, relative to its predecessor, enabled the DJ Mazda2 to achieve a 22 per cent increase in torsional rigidity. Furthermore,

• the proportion of high-tensile steel increased from 53 to 65 percent;
• the proportion of ultra high-tensile steel increased from 10 to 30 per cent;
• for the first time on a Mazda vehicle, ultra high-tensile steel (1180MPa) was used for the roof rails, inner roof rail members, second cross-member and part of the side sill reinforcements; and,
• hot-stamped 1800MPa steel was used on the front bumper beam.

Compared to the DE Mazda2 hatchback, the DJ Mazda2 was 160 mm longer (at 4060 mm), the same width (1695 mm), 20 mm taller (1495 mm) and had an 80 mm longer wheelbase (2570 mm); luggage capacity was 250 litres.

Suspension and steering

The Mazda DJ Mazda2 had MacPherson strut front suspension and torsion beam rear suspension. Furthermore, the DJ Mazda2 had rack-and-pinion steering with electric power assistance; its steering ratio was 14.8:1.

Safety equipment

Standard safety equipment for the Mazda DJ Mazda2 included dual front airbags, front side airbags, full-length curtain airbags (i.e. for front and rear occupants), ABS, electronic brake force distribution, brake assist, electronic stability control, traction control and front seatbelts with pretensioners and load limiters.

As a $400 option, the DJ Mazda2 was available Mazda’s ‘Smart City Brake Support’ (SCBS) system. Operating at speeds between 4 km/h and 30 km/h, SCBS used a near-infrared sensor that was mounted in the upper part of the windshield. If a vehicle or obstacle was detected and a high risk of collision was determined, the brakes would be pressurised. If the driver failed to take evasive action, the brakes would be automatically applied to prevent or reduce the severity of the collision.

Brakes

The DJ Mazda2 had 258 mm by 22 mm ventilated front brake discs and 200 mm by 30 mm rear drum brakes.

Euro NCAP testing

In Euro NCAP testing , the 2015 Mazda DJ Mazda2 received a four star safety rating which included an 86 per cent adult occupant protection rating and a 78 per cent child occupant protection rating. Under ANCAP’s methodology , the DJ Mazda2 received a five star adult occupant protection rating with a score of 36.35 out of 37.

Features: Mazda2 Neo

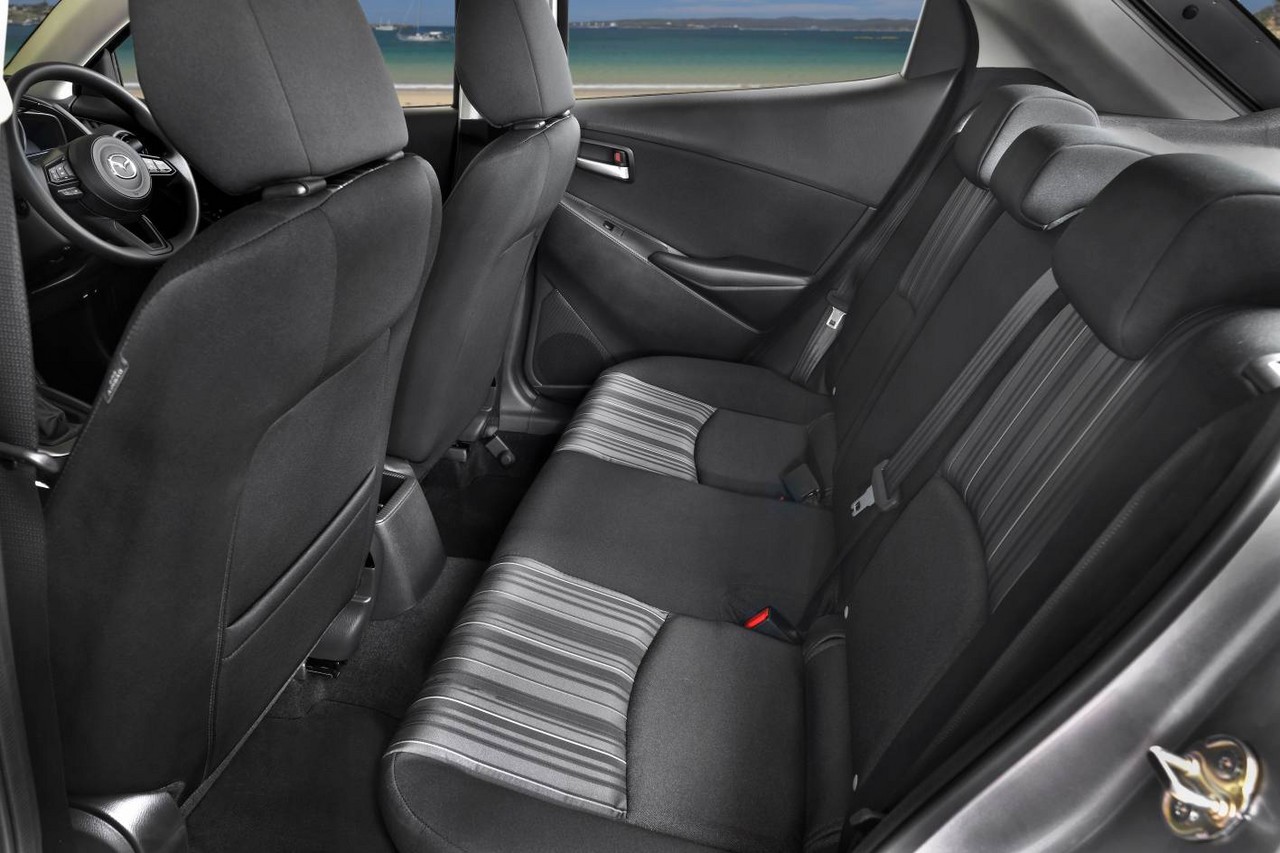

Standard features for the Mazda2 Neo included 15-inch steel wheels with 185/65 R15 88T tyres, a four speaker sound system with an MP3-compatible CD player and auxiliary inputs (3.5 mm/USB/iPod), Bluetooth mobile phone connectivity and audio streaming, air conditioning, black/blue cloth seat trim, 60/40 split and folding rear seats, remote central locking, power windows and mirrors, tilt and telescopic steering wheel adjustment, a height adjustable driver’s seat, push-button start, front vanity mirrors, a 12 volt power socket, trip computer and an immobiliser.

Features: Mazda2 Maxx

Compared to the Neo, the Mazda2 Maxx was further equipped with 15-inch alloy wheels, cruise control and a leather-wrapped gear shift knob, handbrake handle and steering wheel. Inside, the Mazda2 Maxx was differentiated by its high gloss black interior decoration panel.

Features: Mazda2 Genki

The range-topping Mazda2 Genki was distinguished by its 16-inch alloy wheels with 185/60 R16 86H tyres, six speaker sound system, Mazda’s ‘MZD Connect’ with a seven-inch full colour touch screen and satellite navigation, internet radio integration, climate control air conditioning, black cloth seats, front fog lights, automatic headlights and rain-sensing wipers.

The Mazda2 Genki could be identified by its body-coloured front upper grille and chrome exhaust tip; inside, the Genki also had soft-touch centre console side panels, soft-touch black front door armrests and a soft-touch black interior decoration panel.

August 2015 update

Coinciding with the release of the Mazda2 sedan in August 2015, standard features were extended:

• The Mazda2 Neo was fitted with cruise control and rear parking sensors;
• The Mazda2 Maxx gained a reverse camera and MZD Connect (including a seven-inch full colour touch screen, satellite navigation and internet radio integration);
• The Mazda2 Genki was further equipped with LED headlights.

Mazda2 Maxx Colour Pack

For models with Snowflake White Pearl, Aluminium Metallic and Black Mica paint finishes, the Mazda2 Maxx was also available with a Colour Pack option which included:

• High-gloss red centre console side panels;
• Soft-touch red front armrests;
• High-gloss red front door armrest panels;
• A high-gloss white interior decoration panel; and,
• Red coloured seats.

Genki S Pack

From August 2015, the Mazda2 Genki was offered with an optional ‘S Pack’ which included soft-touch off-white interior trim with white stitching on the centre console sides, the front door armrests and front decoration panel. The front door armrest panels were a high-gloss white and the seat colours included off-white and black with a leather and cloth trim. The S Pack also included Mazda’s ‘Smart City Brake Support’.

Paint finishes

The Mazda2 was available in the following paint finishes: Soul Red Metallic, Dynamic Blue Mica, Smoky Rose Mica, Aluminium Metallic, Black Mica, Snowflake White Pearl Mica, Gunmetal Blue Mica and Metropolitan Grey Mica.

In August 2015, Titanium Flash Mica was introduced.

Brochure and specifications

• Brochure: Mazda DJ Mazda2 hatch (October 2014)
• Brochure: Mazda DJ Mazda2 hatch and DL Mazda2 sedan (April 2016)

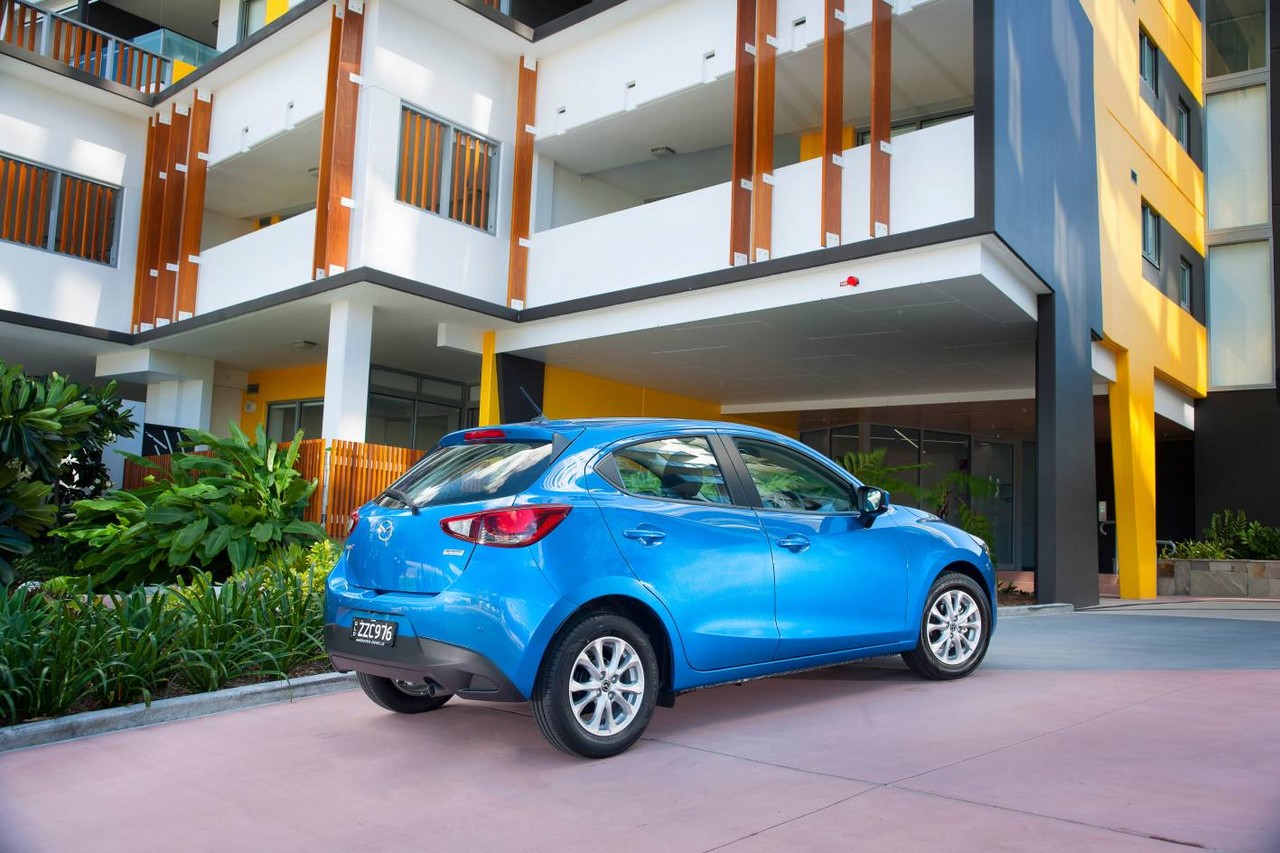

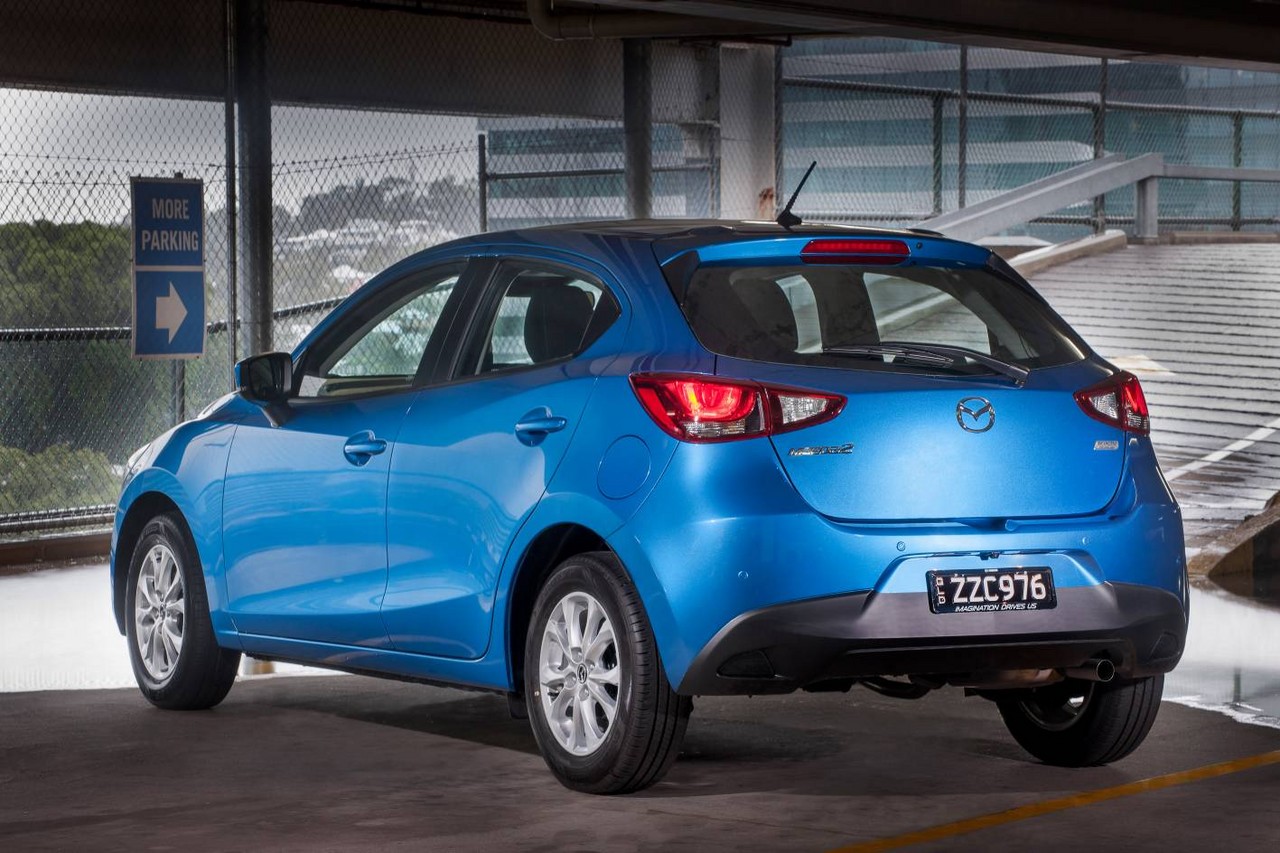

Review: Mazda DJ.II Mazda2 hatch (2017-on)

Overview

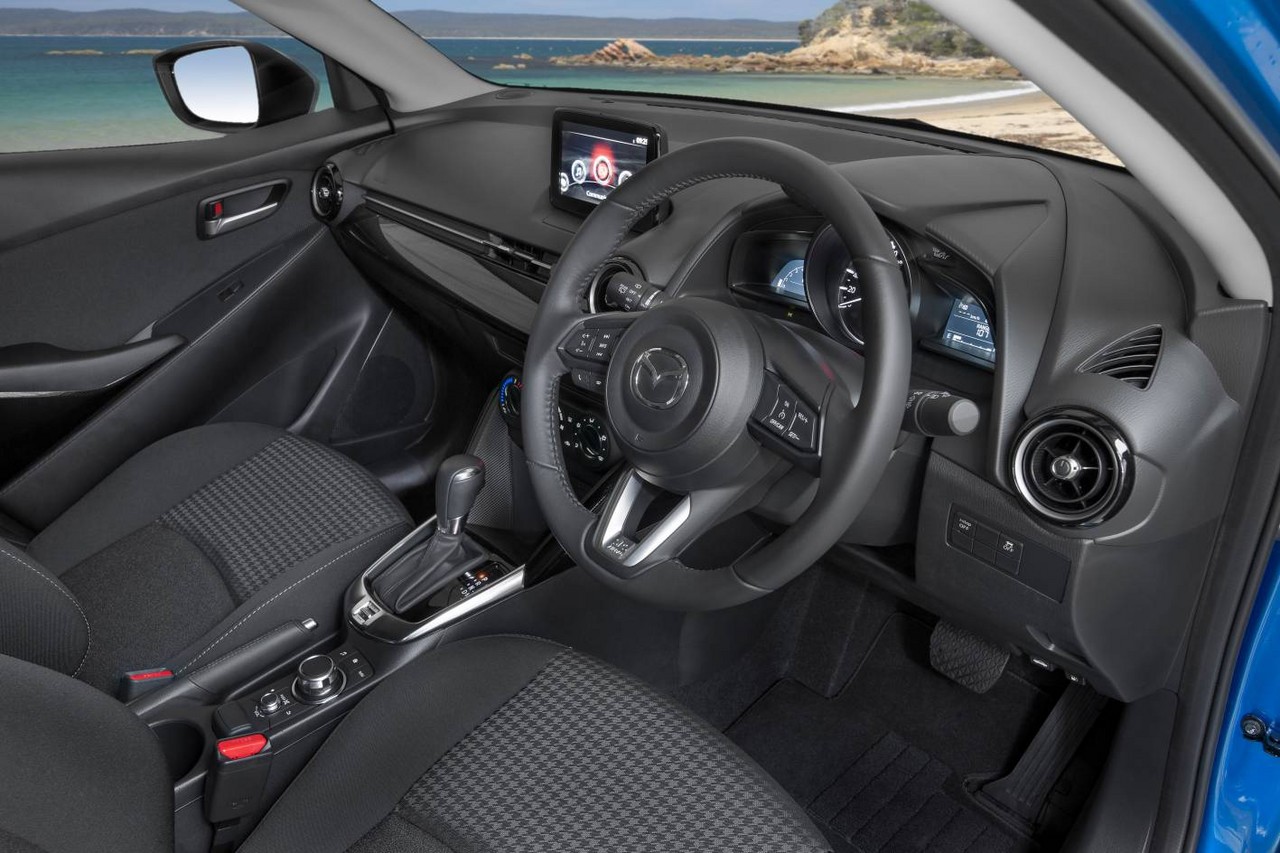

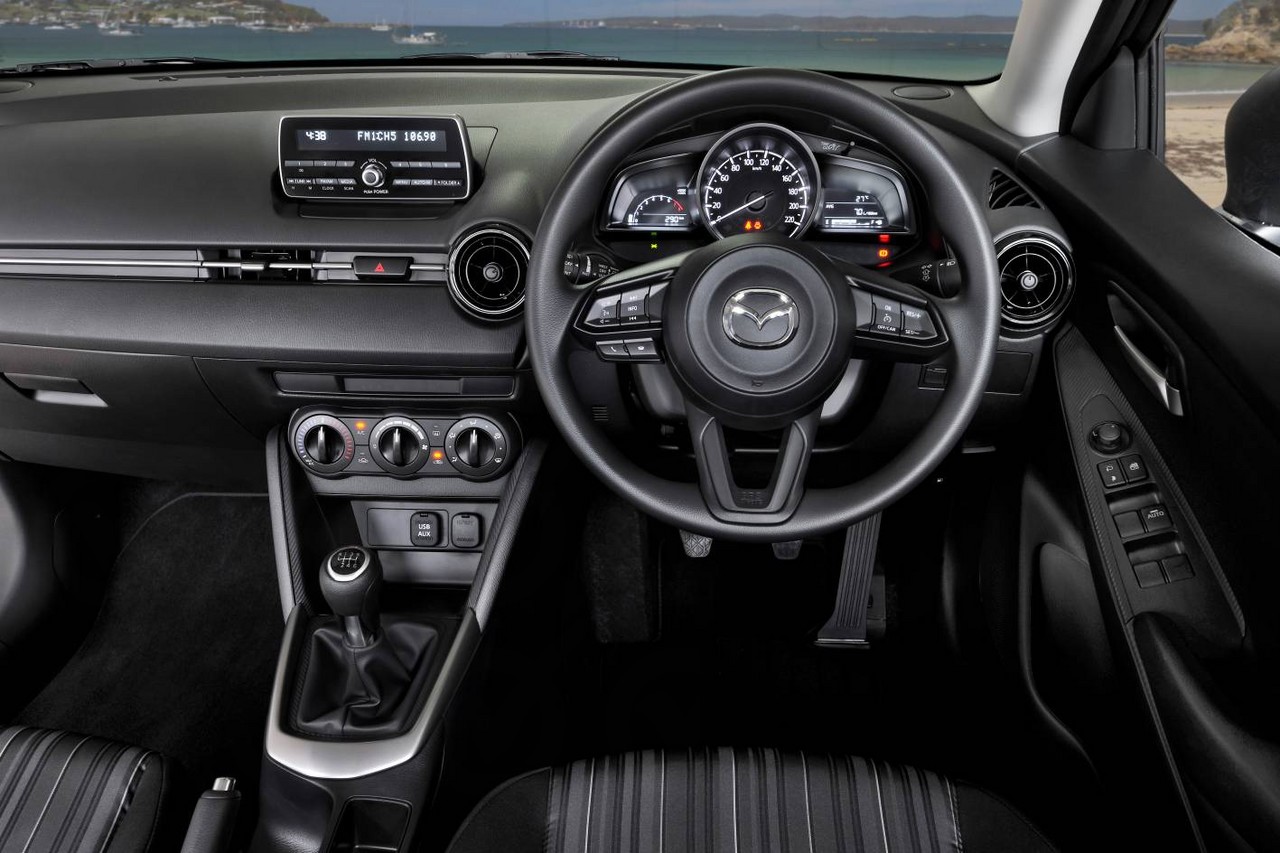

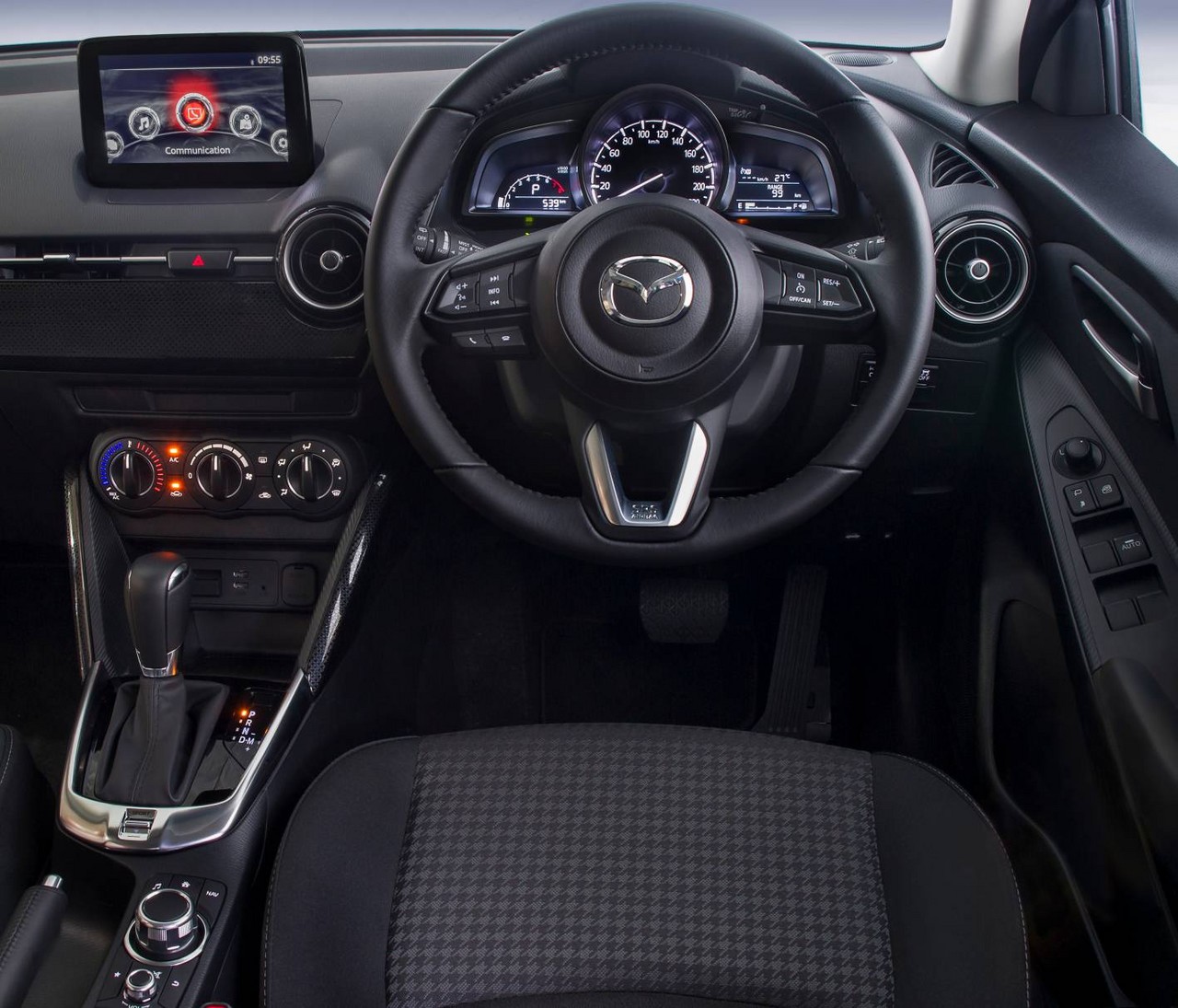

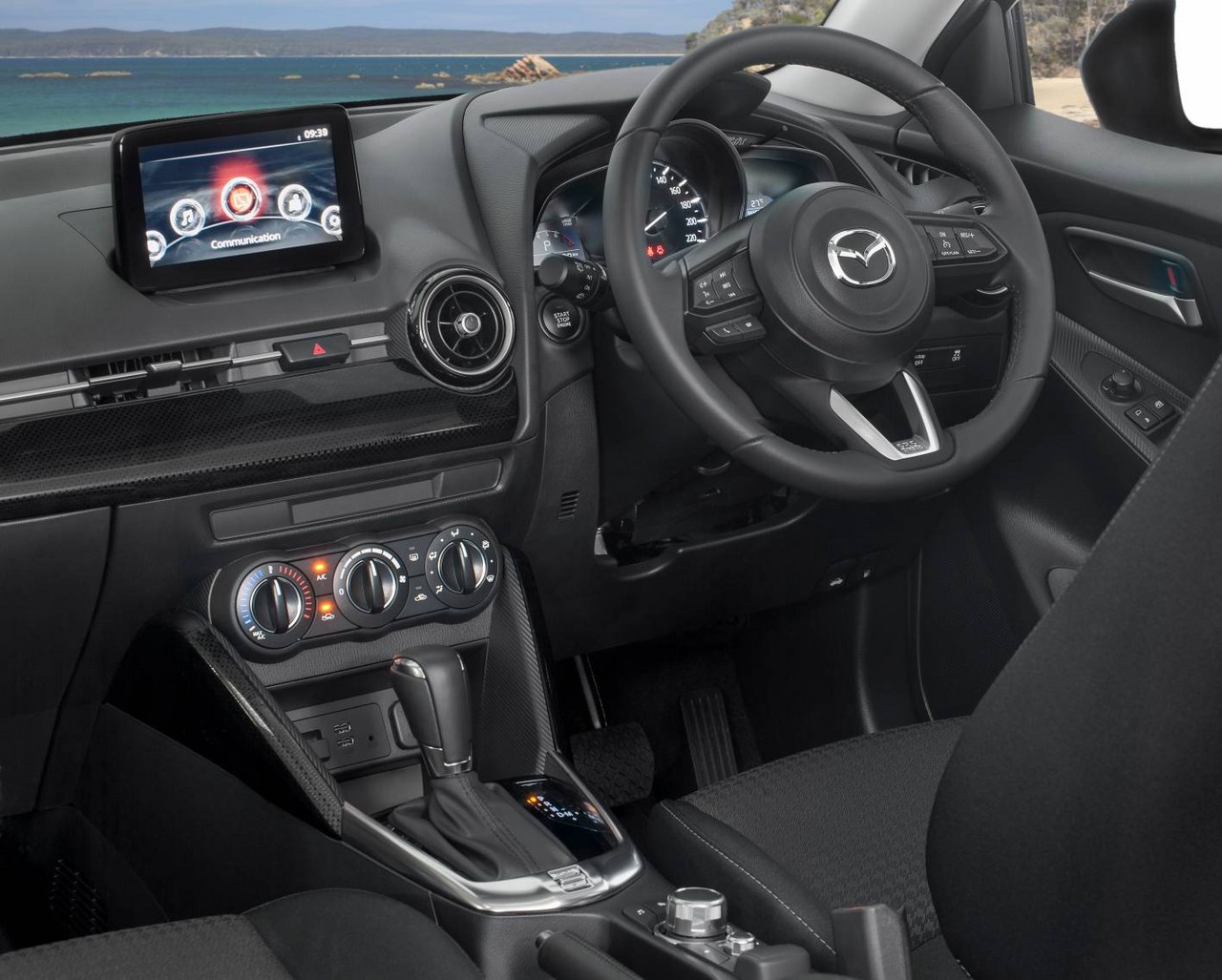

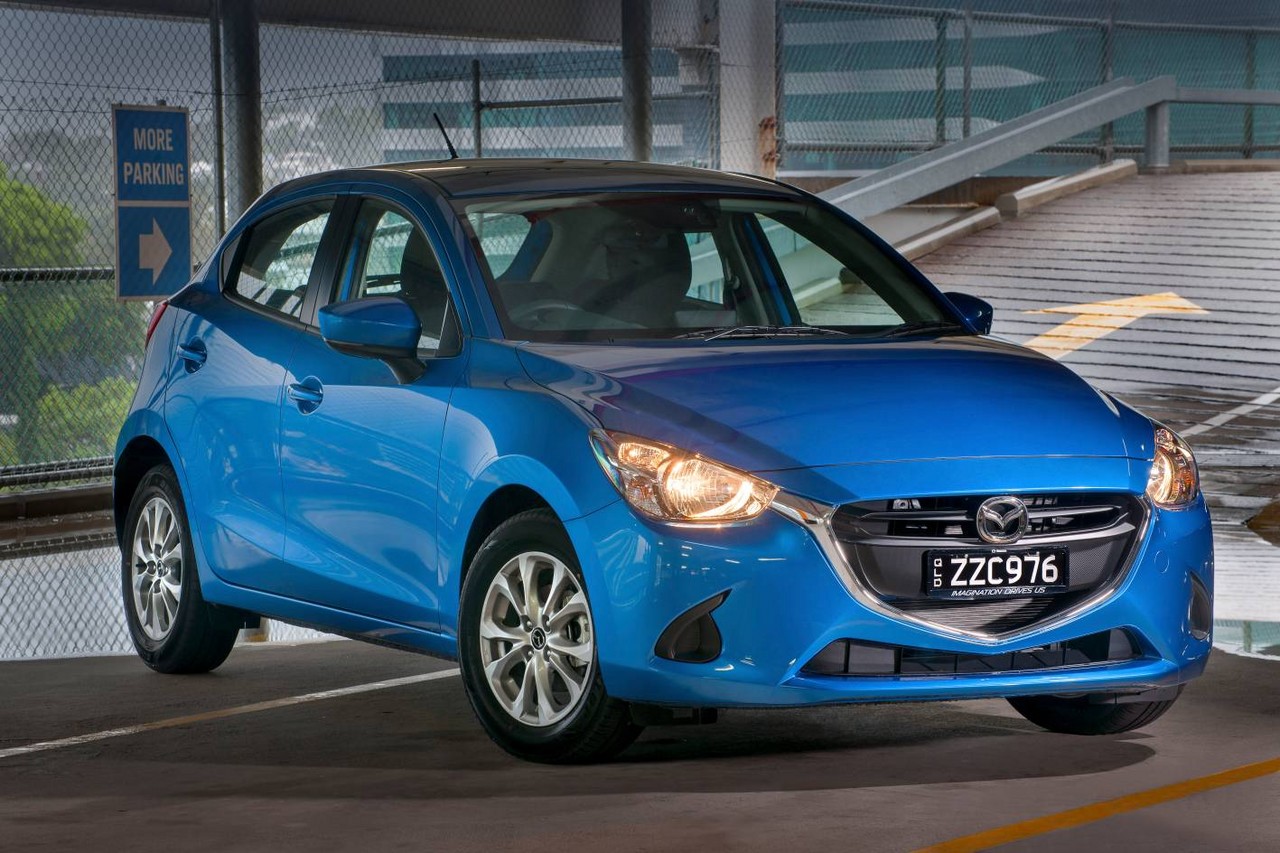

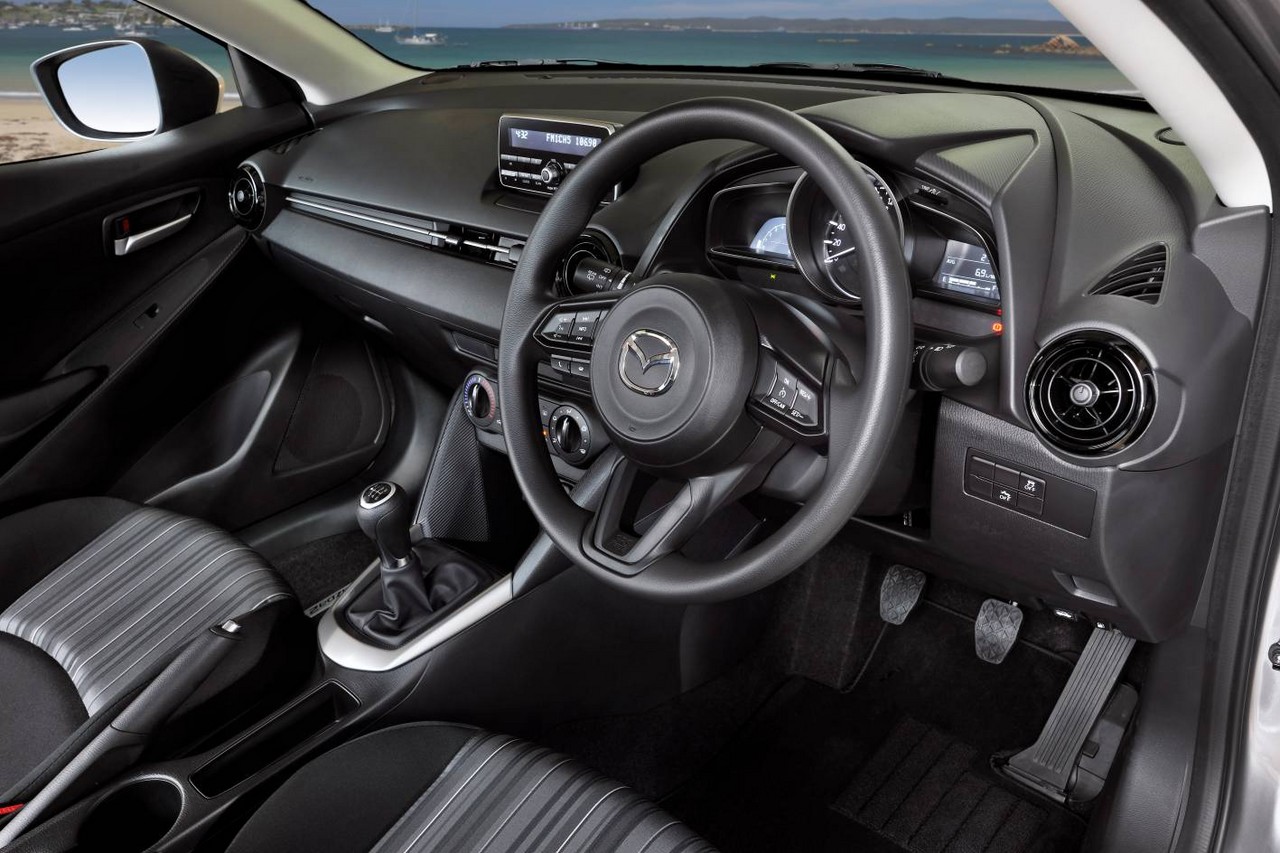

Released in April 2017, the Mazda DJ Series II (DJ.II) Mazda2 hatch introduced new range-topping GT variants, revised suspension, noise reduction measures and additional safety equipment. Visual changes for the DJ.II Mazda2 hatch were limited to integrated indicators for the door mirrors. Inside, however, the DJ.II Mazda2 introduced a new steering wheel which had a smaller centre pad, more legible instruments and updated interior trim for all variants.

The Mazda DJ.II Mazda2 also introduced Mazda’s ‘G-Vectoring Control’ (GVC) which, as the steering wheel was turned, GVC would slightly reduce torque – usually by 0.01 g or less – to the front wheels to generate a small shift in load to the front axle and improve cornering response.

Suspension and steering

Suspension changes for the DJ.II Mazda2 included:

• Softer front stabiliser bushings which allowed deformation at the initial stage of a turn for more linear movement of the front suspension;
• Optimisation of the prying characteristics of the rear bushing on the front suspension’s lower arm to secure a firm stroke feeling and improve ride comfort;
• An enhanced insertion angle for the torsion beam rear axle bushings so that the rear suspension action mimicked the front suspension and reduced rear tyre skip; and,
• Revised valve structures for the front and rear dampers to improve damping characteristics for greater ride comfort.

As part of the update, the Mazda DJ.II Mazda2 also had recalibrated electric power steering.

Noise reduction

To reduce interior noise, the Mazda DJ.II Mazda2 introduced a noise-insulating windscreen, upgraded engine compartment insulation and additional luggage compartment insulation and damping material.

Safety equipment

For the Mazda DJ.II Mazda2, standard safety equipment was extended to include Mazda’s ‘Smart City Brake Support – Forward’ (SCBS-F). When driving at speeds between 4 km/h and 30 km/h, SCBS used a near-infrared sensor mounted on the windscreen to detect collision hazards. If detected, SCBS would pressurise the braking system for optimum response and, if the driver failed to react, automatically apply the brakes to reduce vehicle speed – this could prevent a collision with the vehicle or reduce its severity.

Beyond this, the DJ.II Mazda2 Maxx, Genki and GT were also fitted with Mazda’s ‘Smart City Brake Support – Reverse’ (SCBS-R) which used ultrasound sensors mounted on the rear bumper to detect obstacles when the vehicle was travelling at speeds between 2 km/h and 8 km/h. If an obstacle was detected and a collision assessed to be imminent, the brakes would be applied automatically.

Finally, the DJ.II Mazda2 Genki and GT were both equipped with –

• Blind Spot Monitoring (BSM): used radar sensors to detect vehicles approaching from the blind spot areas at the side and rear. If the driver activated a turn signal to change lanes and a vehicle was in the driver’s blind spot, a visual indicator in the respective door mirror would flash and a warning tone would sound; and,
• Rear Cross Traffic Alert (RCTA): as the driver was reversing, RCTA used the rear radar sensors to detect traffic that may cross the vehicle’s path. If detected, a visual indicator in the respective door mirror would flash and a warning tone would sound.

Features: Mazda DJ.II Mazda2

Standard features for the Mazda DJ.II Mazda2 Neo were extended to include power folding door mirrors, while the Mazda2 Maxx and Genki also gained a digital radio tuner (DAB+).

Beyond this, the DJ.II Mazda2 Genki also gained LED headlights and auto-folding door mirrors. Relative to the Genki, the range-topping Mazda2 GT was distinguished by its ‘pure white’ leather seat trim.
