Review: Mercedes C216 CL 63 and 65 AMG (2007-13)

[su_row][su_column size=”1/2″ center=”no” class=””]

• Powerful M156 V8 , biturbo M157 V8 and biturbo M275 V12 engines
• Excellent dynamics
• Quiet, well-insulated cabin
• High standard of interior fit and finish

[/su_column][su_column size=”1/2″ center=”no” class=””]

• M156 V8 engine susceptible to cylinder head bolt failure, camshaft lobe and valve lifter wear
• Steering lacks feel
• High running and maintenance costs

[/su_column][/su_row]

Review: Mercedes C216.I CL 63 and 65 AMG (2007-10)

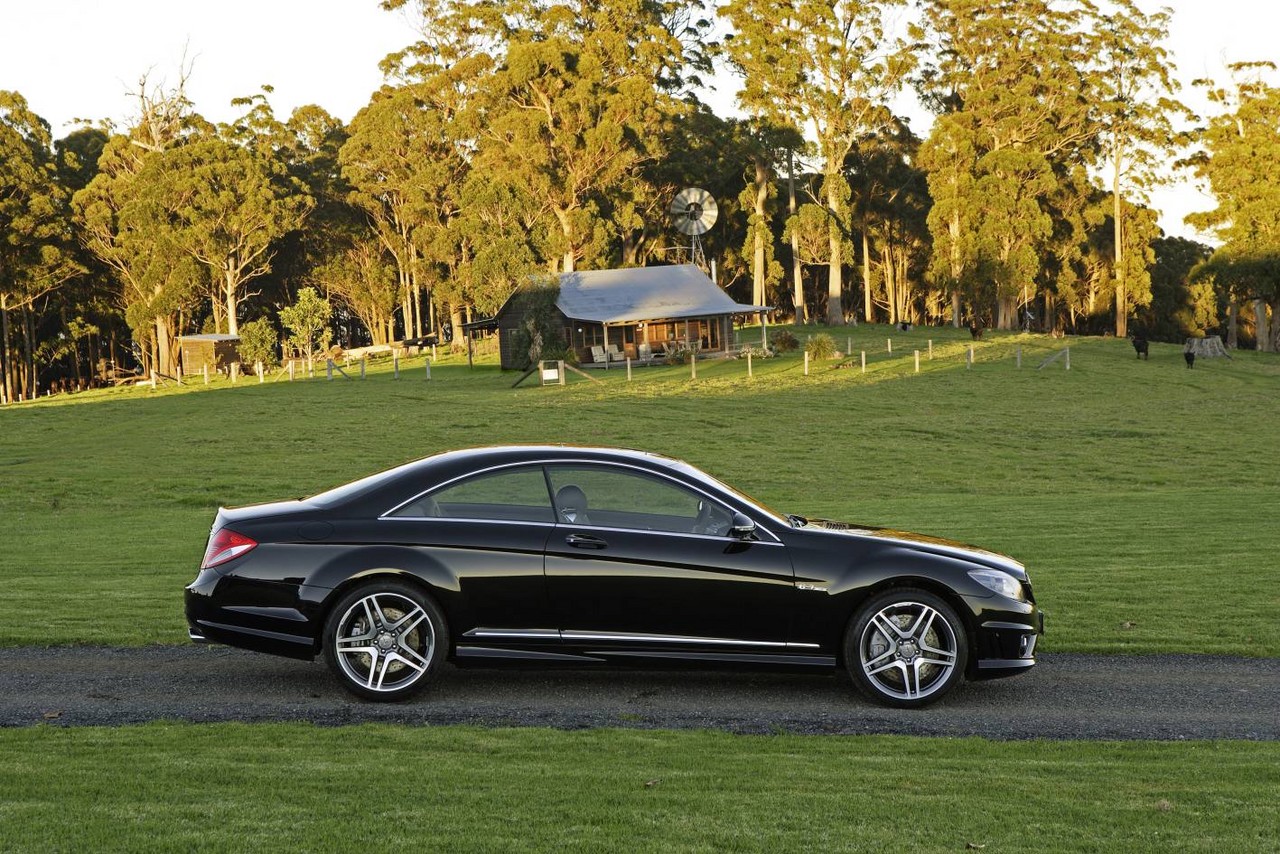

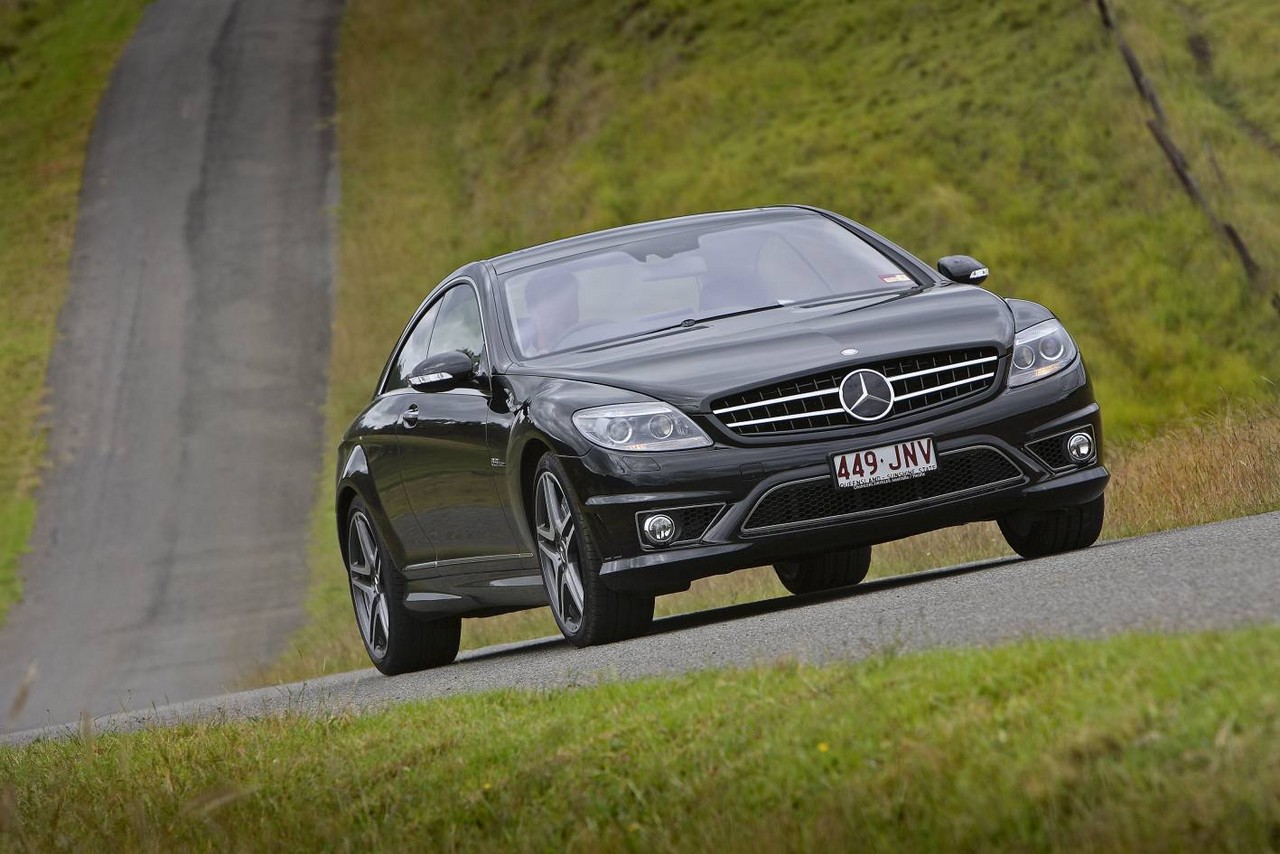

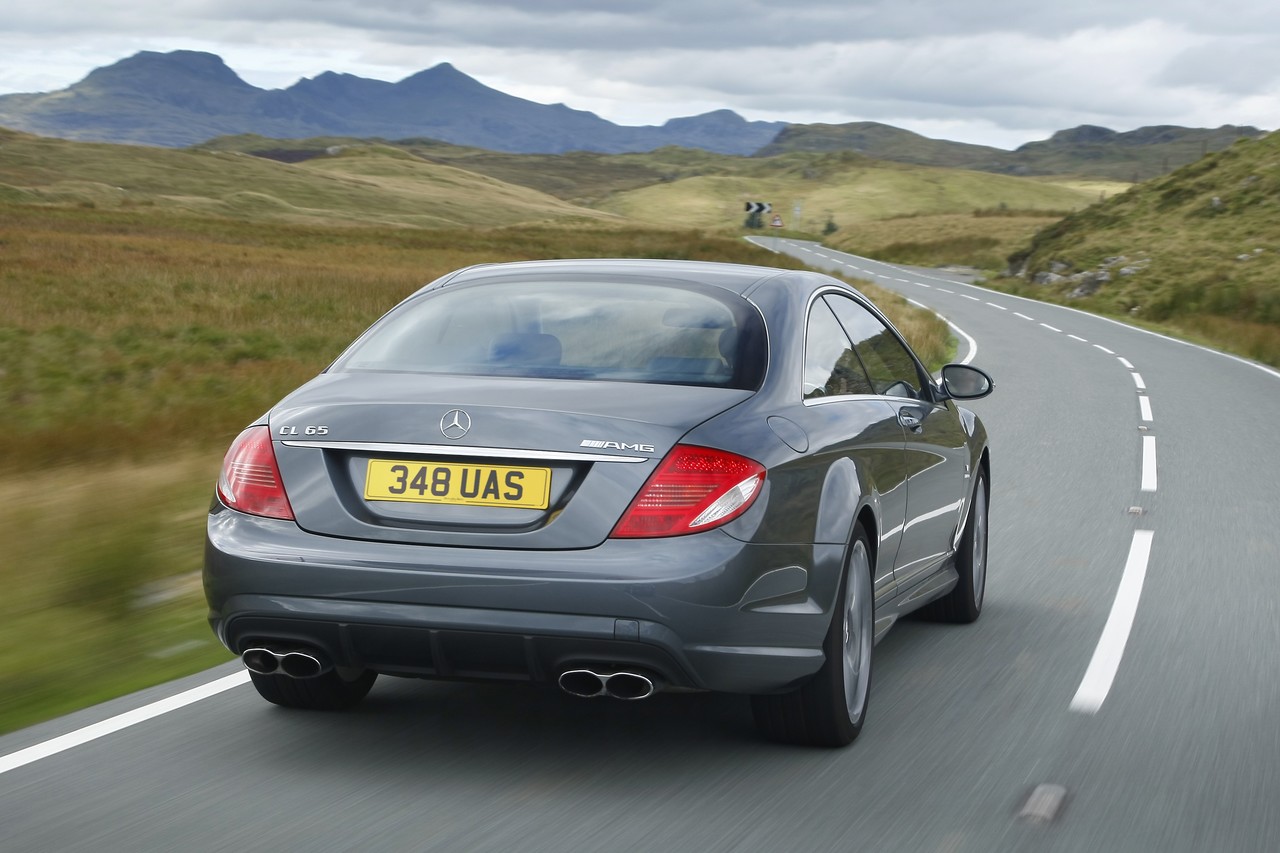

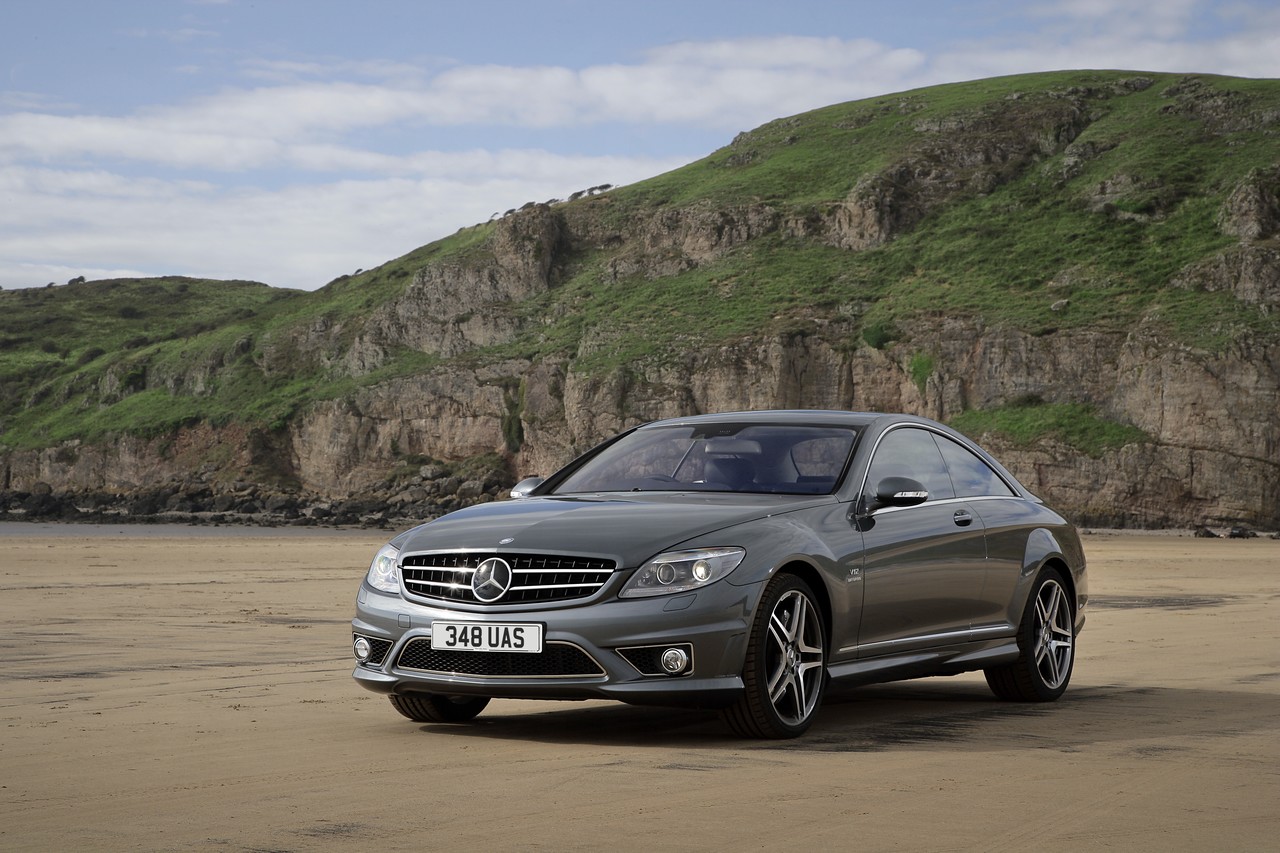

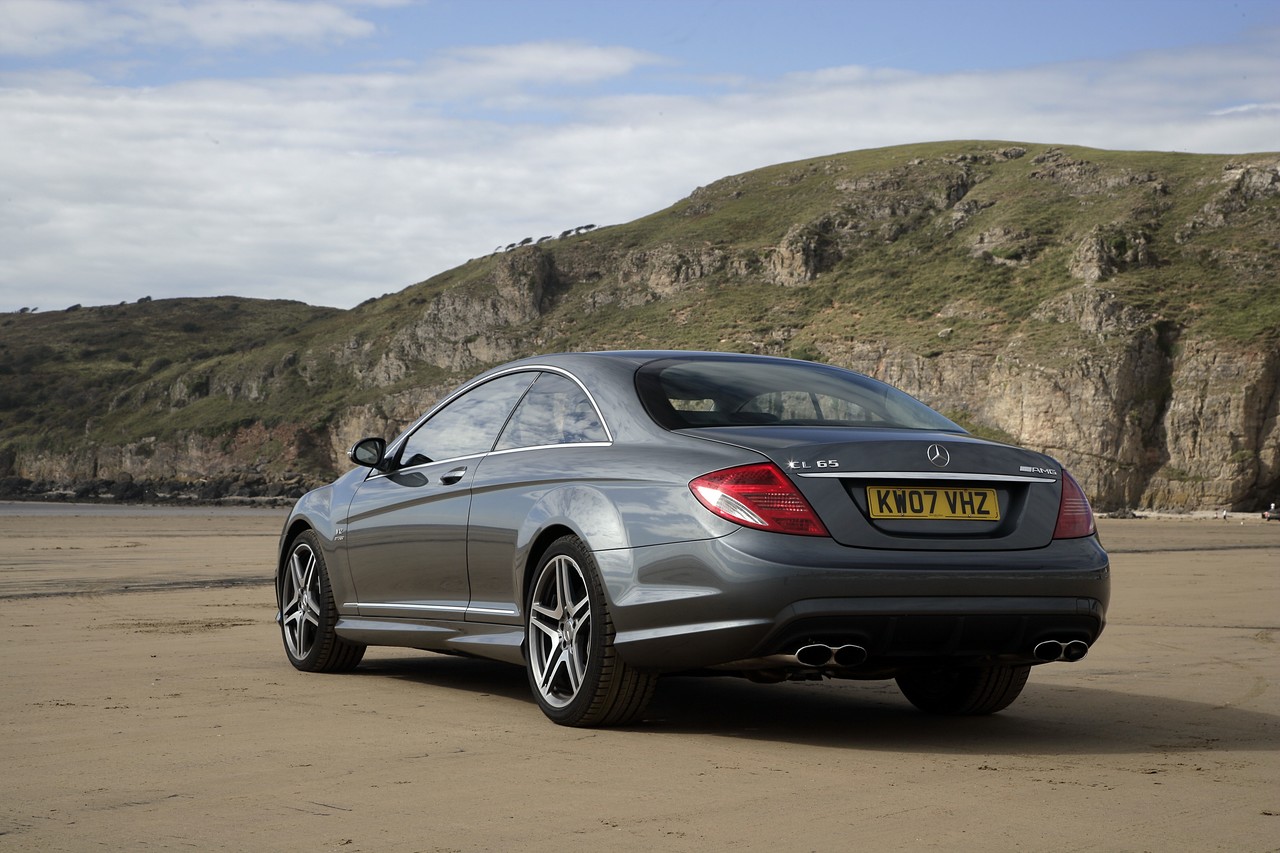

[su_image_carousel source=”media: 25447,25448,25449,25450,25451,25452,25453,25454,25455,25456,25457,25458″ limit=”99″ slides_style=”minimal” controls_style=”light” captions=”yes” dots=”no” link=”lightbox” target=”self” autoplay=”3″ title=”always”]

Overview

Released in Australia in March 2007, the Mercedes-Benz C216 CL was a large, rear-wheel drive coupe. Manufactured in Sindelfingen, Germany, the first C216 CL AMG model to be released was the CL 63 AMG, with the CL 65 AMG following in October.

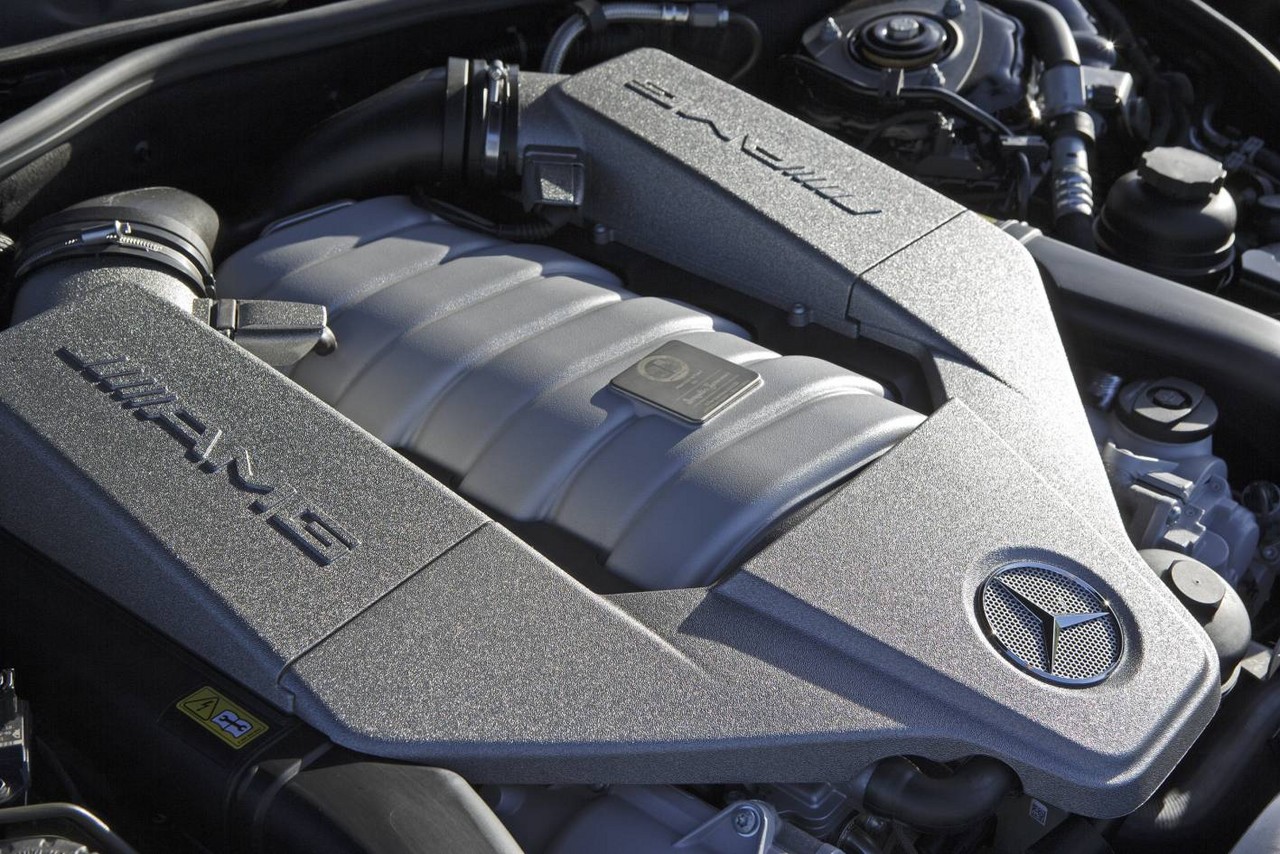

CL 63 AMG: M156.984 V8 engine

Shared with the W221 S 63 AMG and assembled by hand at Mercedes-AMG in Affalterbach, Germany, the 6208 cc M156.984 V8 petrol engine had an aluminium-silicon alloy (AlSi7) block which had 102.2 mm bores and a 94.6 mm stroke, an aluminium-silicon alloy (AlSi17) cylinder head, a Cromax 42CrMo4V forged steel alloy crankshaft, fracture-split forged connecting rods, cylinder bores with twin-wire-arc-sprayed (TWAS) coating, double overhead camshafts per cylinder bank (intake cams driven by a double chain from the crankshaft and small gears on the intake cams drive the exhaust camshafts), continuously variable intake and exhaust camshafts (over a range of 40 degrees via electrohydraulic vane-type adjusters), four valves per cylinder (40 mm intake valves and 34 mm exhaust valves) with bucket tappets, a magnesium variable intake manifold (with two integral throttle flaps), a compression ratio of 11.3:1 and Bosch 9.7 engine management system. Maximum engine speed for the M156 V8 engine was 7200 rpm.

The CL 63 AMG could accelerate from ret to 100 km/h in 4.6 seconds and had an electronically-limited top speed of 250 km/h. Over the combined EUDC cycle, fuel consumption was 10.2 litres per 100 km.

CL 65 AMG: M275.982 biturbo V12 engine

Shared with the V221 S 65 AMG , the 5980 cc M275.982 V12 engine had a reinforced aluminium alloy block with 82.6 mm bores and a 93.00 mm stroke, an aluminium cylinder head, twin turbochargers, manifold injection, a single overhead camshaft per cylinder bank (SOHC), three valves per cylinder (two intake and one exhaust) that were actuated by aluminium roller rocker arms, two spark plugs per cylinder, and a compression ratio of 9.0:1. Furthermore, the twin turbochargers – one per cylinder bank – had air-to-liquid intercooler and provided peak boost pressure of 1.52 bar (22.1 psi).

Compared to the standard 6.0-litre biturbo V12, changes for the AMG version included:

• Higher-strength material for the crankshaft;
• Forged pistons made from a temperature and pressure resistant material and had an upgraded oil-spray cooling system with a separate individual nozzle per piston. The size of the piston pins was also increased;
• The main and connecting rod bearings were made from higher-specification material;
• The combustion chambers in the cylinder heads were optimised;
• The camshafts had increased stroke on the intake side and longer opening times;
• The oil pump was modified and a larger oil cooler used to ensure lubrication under extreme conditions;
• The housings of the compressor and turbine, the turbine and the compressor wheels were enlarged;
• Maximum charge pressure was increased to 1.5 bar;
• Larger injection valve openings increased fuel throughput;
• A new intercooler design which featured a 70 per cent larger front-mounted low-radiator;
• The system pressure of the computer-controlled fuel system was increased to 3.8 bar; and,
• A new engine management system was used, which included new wastegate valve actuation control for both turbochargers.

While the engine could produce peak torque of 1200 Nm, it was electronically-limited to 1000 Nm to protect the transmission. However, the M275.982 engine could produce 570 Nm at 1000 rpm and 750 Nm at 1500 rpm.

The CL 65 AMG could accelerate from rest to 100 km/h in 4.4 seconds and had an electronically limited top speed of 250 km/h. Over the combined EUDC cycle, fuel consumption was 14.8 litres per 100 km. [su_table responsive=”yes”]

[/su_table]

AMG Speedshift and AMG Speedshift 7G-Tronic transmissions

The Mercedes-Benz CL 63 AMG and CL 65 AMG engines were mated to AMG Speedshift and AMG Speedshift 7G-Tronic transmissions, respectively. Both transmissions had three selectable drive modes – Comfort (C), Sport (S) and Manual (M) – which affected transmission programming, throttle response and spring/damper settings of the ‘AMG sports suspension’ with Active Body Control. Furthermore, the driver could shift gears, at any time, by using the steering wheel gearshift paddles.

For the CL 63 AMG, the gear ratios were 4.38 (1st), 2.86 (2nd), 1.92 (3rd), 1.37 (4th), 1.00 (5th), 0.82 (6th) and 0.73 (7th), with a final drive ratio of 3.06. For the CL 65 AMG, the ratios were 3.60 (1st), 2.19 (2nd), 1.41 (3rd), 1.00 (4th) and 0.83 (5th), with a final drive ratio of 2.65.

Other features of the AMG Speedshift transmissions included:

• A downshift braking function if deceleration conditions were satisfied; and,
• Delayed gear shifting if a certain level of lateral acceleration was present, to prevent gearshifts when cornering.

Dimensions and body

Compared to the supercharged C215 CL 55 AMG , the C216 CL 63 AMG was 72 mm longer (at 5065 mm), 14 mm wider (1871 mm), 20 mm taller (1418 mm) and had a 70 mm longer wheelbase (2955 mm); kerb weight increased by 130 kg to 2085 kg. Relative to the CL 64 AMG, the CL 65 AMG was 19 mm longer (at 5084 mm) and weighed 155 kg more with a kerb weight of 2240 kg.

Both the CL 63 AMG and CL 65 AMG had a drag coefficient of 0.28 Cd.

Suspension and Active Body Control

The Mercedes-Benz CL 63 AMG and CL 65 AMG had four-link front suspension and multi-link rear suspension. The suspension featured Mercedes-Benz’s ‘Active Body Control’ (ABC) which used four computer-controlled spring struts with plunger cylinders to compensate for roll, pitch and vertical movements. Using acceleration sensors, pressure sensors in the spring struts and level sensors in the control arms, the on-board computer activated servo-hydraulic valves in the front and rear axle to control oil flow rates. Oil flowing into the plunger’s cylinders then moved the base of the steel springs that were integrated in the spring struts to counter the body’s movements.

The ABC system sought to control body vibrations up to five (5) hertz that were typically caused by rolling and vertical movements on uneven road surfaces, body roll when cornering and pitching when braking. Higher frequency vibrations, however, were to be absorbed by passive twin-tube gas-charged shock absorbers.

Steering

The Mercedes-Benz CL 63 AMG and CL 65 AMG had rack-and-pinion steering with speed-sensitive power assistance (Mercedes-Benz’s ‘parameter steering’).

Safety equipment

Standard safety equipment for the Mercedes-Benz CL 63 AMG and CL 65 AMG included dual front airbags, front and rear side airbags, full-length curtain airbags, ABS, electronic brake force distribution, brake assist, electronic stability control, traction control, active front seat head restraints and front and outer rear seatbelts with pre-tensioners and load limiters.

The CL 63 AMG and CL 65 AMG were also fitted with:

• Mercedes-Benz’s ‘Pre-Safe’ which, in the event that an accident was anticipated, would prepare the vehicle by tensioning the front seat belts, inflating the air cushions in the multicontour seats and closing the sunroof and windows (if open);
• Brake Assist Plus: used a 24 GHz radar sensor with a range of 30 metres and a 77 GHz radar sensor with a range of 150 metres to monitor the distance to the vehicle ahead and would warn the driver if there was a risk of a collision. Brake Assist Plus could detect vehicles when travelling at speeds up to 200 km/h, and stationary objects when the driver was travelling at 7 km/h to 72 km/h. Significantly, Brake Assist Plus could calculate the necessary brake force assistance to prevent a rear-end collision, build up that pressure in the braking system and provide it as soon as the brake pedal was depressed for ‘the best possible deceleration’. In emergency braking situations, the brake lights would also rapidly flash to warn following traffic;
• Pre-Safe Brake (autonomous emergency braking): using two 24 GHz sensors behind the front bumper which had a range of 30 metres and a 77 GHz radar which had a range of 150 metres, Pre-Safe Brake operated at speeds between 30 km/h and 180 km/h, and at speeds below 70 km/h if the vehicle was approaching a stationary queue of traffic. Around 2.6 seconds before the anticipated moment of impact, an audible warning would sound and a red warning would appear in the tachometer. Around 1.6 before the calculated impact, the first stage of Pre-Safe Brake would initiate partial braking autonomously with around 40 per cent of the maximum braking power (approximately four (4) m/s²); the Pre-Safe occupant protections system would also be activated. If the driver then applied the brakes, maximum braking force would be made available. If the driver failed to react, Pre-Safe Brake would – in its second stage – initiate autonomous emergency braking (i.e. maximum braking power) around 0.6 seconds before the unavoidable collision to reduce the severity of the impact;
• Distronic Plus (adaptive cruise control with brake warnings): an ‘adaptive cruise control’ system which combined 24 GHz radar sensors which had a range of around 30 metres and a 77 GHz radar which had a range of 150 metres. Operating at speeds up to 200 km/h, Distronic Plus used an electronic control unit to analyse the information from both radar systems to calculate the engine, automatic transmission and braking parameters required for proximity control. As such, Distronic Plus could automatically apply the brakes to prevent the vehicle from becoming too close to traffic ahead (the time interval could be specified) and accelerate back to the set speed when traffic allowed. To accelerate from rest, the driver only needed to operate the Distronic stalk on the steering column or briefly depress the accelerator pedal. With Distronic Plus, automatic deceleration of up to four (4) m/s²was possible. If Distronic Plus detected that heavier braking was required, a warning light would illuminate in the instrument cluster and be accompanied by an audible warning. Furthermore, the electronic proximity control system could be activated independently of Distronic Plus at speeds over 30 km/h to alert the driver if they were approaching another vehicle too rapidly;
• Night View Assist: utiltised two infra-red sensors and an infra-red camera on the inside of the windscreen to record the reflected image of the road ahead – over 150 metres away – and display the image in the instrument cluster.

Brakes: CL 63 AMG and CL 65 AMG

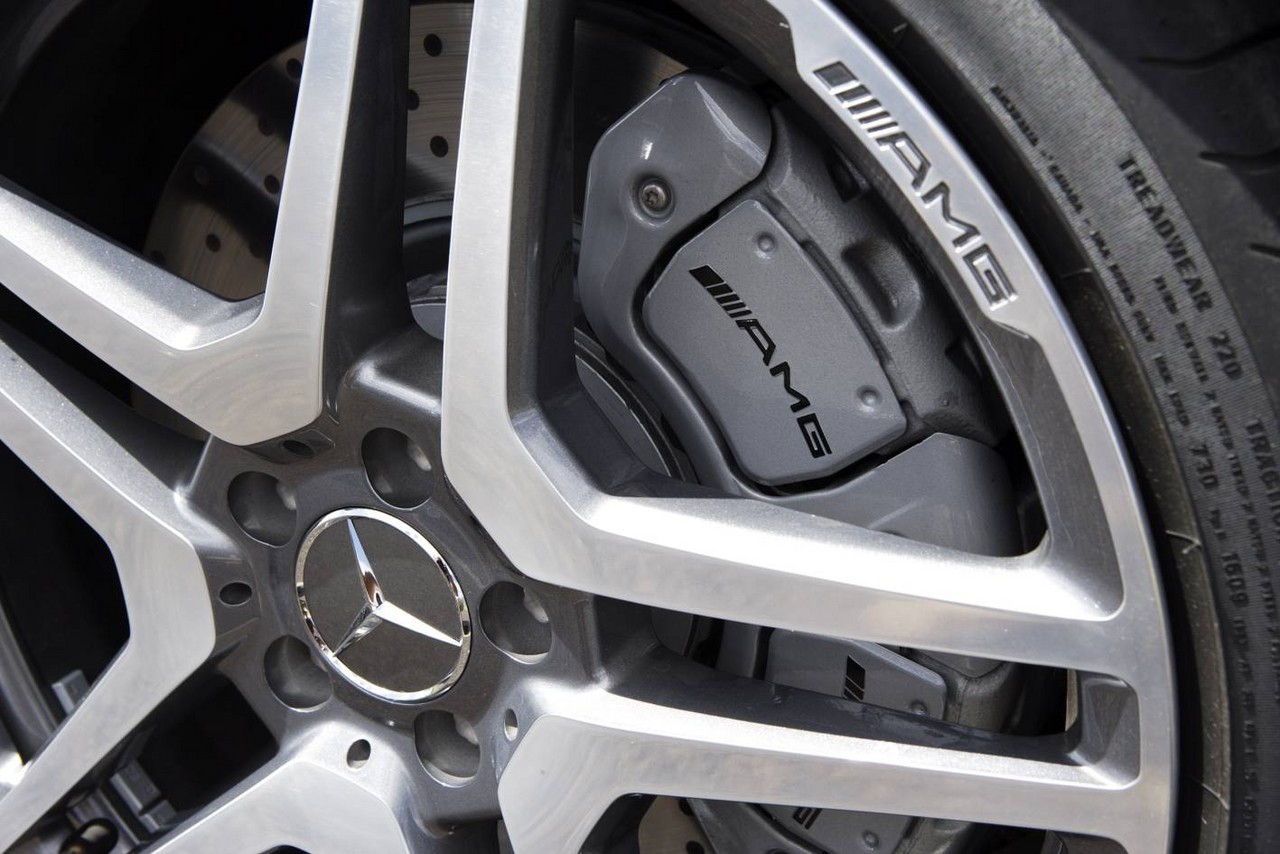

The CL 63 AMG and CL 65 AMG had 390 mm composite front brake discs with twin sliding callipers and 365 mm composite rear brake discs with a sliding frame-type calliper.

According to Mercedes-Benz, the twin-sliding calliper combined the advantages of a floating-calliper brake (i.e. lower heat transfer to the brake fluid and improved ride comfort due to the location of the brake pads) with the performance of a large fixed-calliper brake.

Features: Mercedes-Benz CL 63 AMG

Standard features for the Mercedes-Benz CL 63 AMG included 19-inch alloy wheels (8.5J front and 9.5J rear), 255/40 ZR 19 XL front and 275/40 ZR 19 XL rear tyres, a Harman Kardon Logic7 sound system with eleven speakers, a six disc CD/DVD player, MP3-compatibility, auxiliary inputs and hard-drive for music storage, COMAND (Cockpit Management and Data System) with satellite navigation, TV tuner, Bluetooth connectivity and voice recognition (‘Linguatronic’), four-zone climate control air conditioning, multi-contour AMG front seats (with nine air cushions, massage function, power adjustment, heating and ventilation), leather upholstery, directional bi-xenon headlights with washers, front fog lights, a reversing camera with parking guidance system, automatic headlights, rain-sensing wipers, front and rear parking sensors, an AMG leather-wrapped steering wheel with gearshift paddles, remote central locking with proximity key for remote entry and starting (‘keyless go’), power adjustable mirrors with heating and folding functions, power windows, a power adjustable steering column (for height and reach), a power-operated park brake, power sunroof, ambient lighting, rear blind, memory settings (for the front seats, mirrors and steering column), a 12 volt power outlet, tyre pressure monitoring, remote garage door opener, ‘IWC Ingenieur’ design analogue clock, a trip computer, ‘Racetimer’, a motion-sensing alarm and an immobiliser.

Features: Mercedes-Benz CL 65 AMG

Compared to the CL 63 AMG, the CL 65 AMG was further equipped with 20-inch alloy wheels (8.5J front and 9.5J rear) with 255/35 ZR 20 XL front and 275/35 ZR 20 XL rear tyres and ‘Exclusive Passion’ nappa leather upholstery with a diamond pattern.

August 2007 update

In August 2007, standard features for the COMAND APS were extended to a 3D map display for the navigation system and a triple auxiliary input socket in the glovebox (including video).

Review: Mercedes C216.II CL 63 and CL 65 AMG (2010-13)

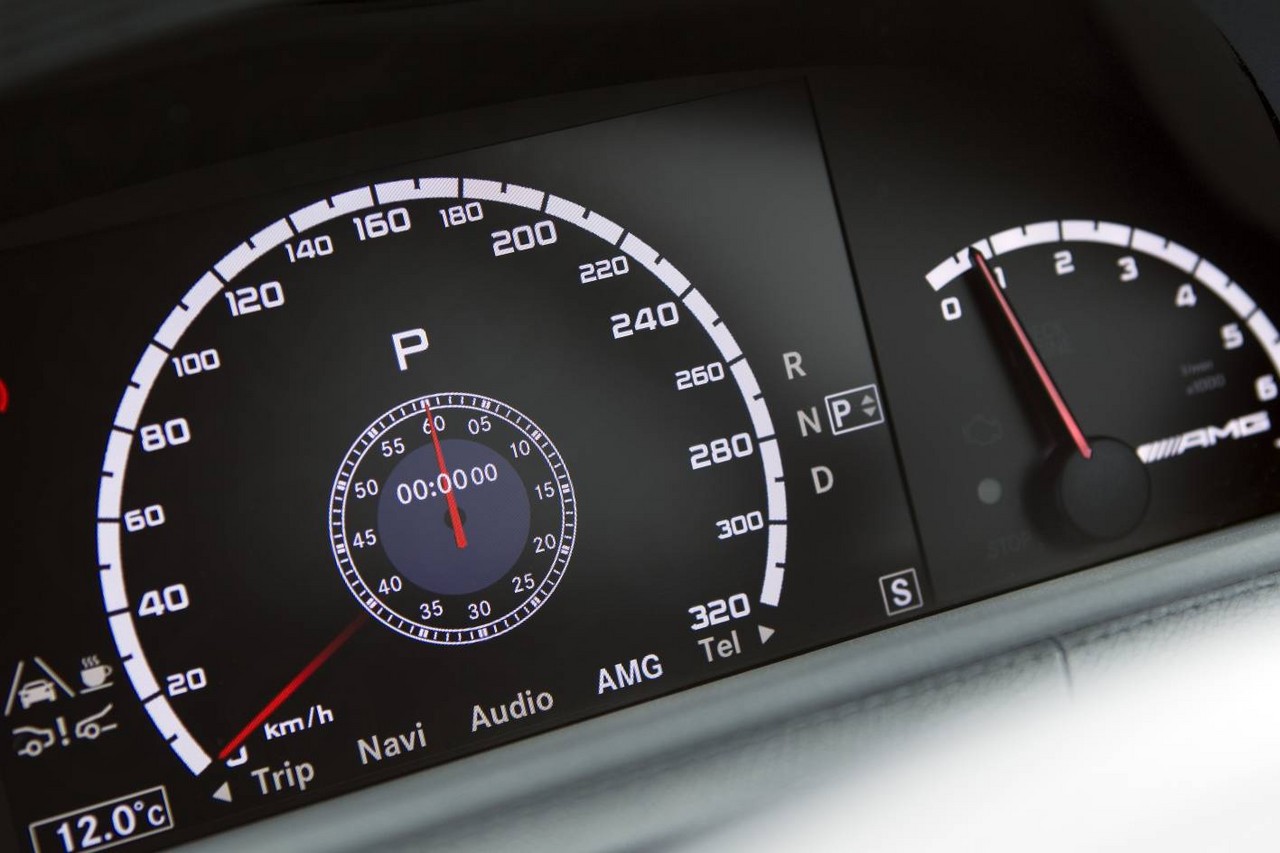

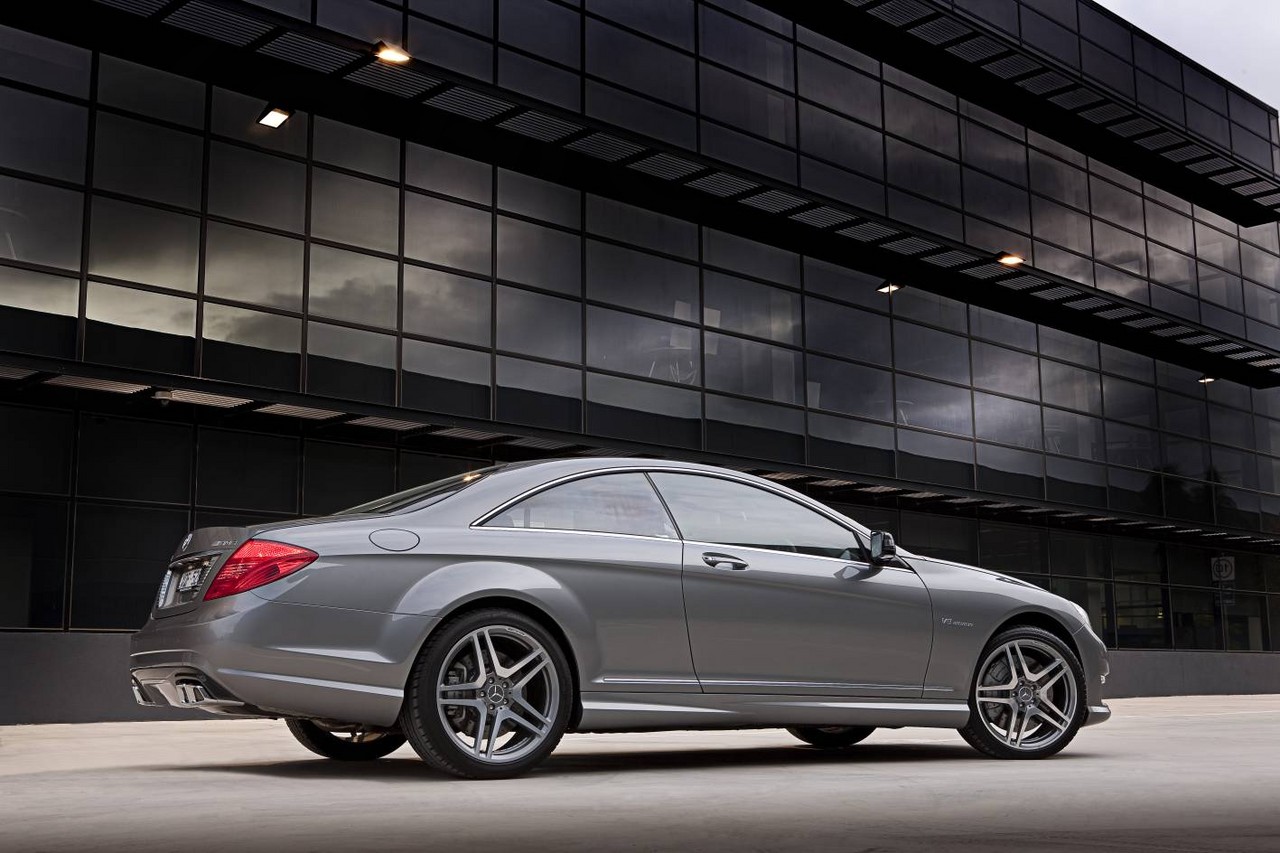

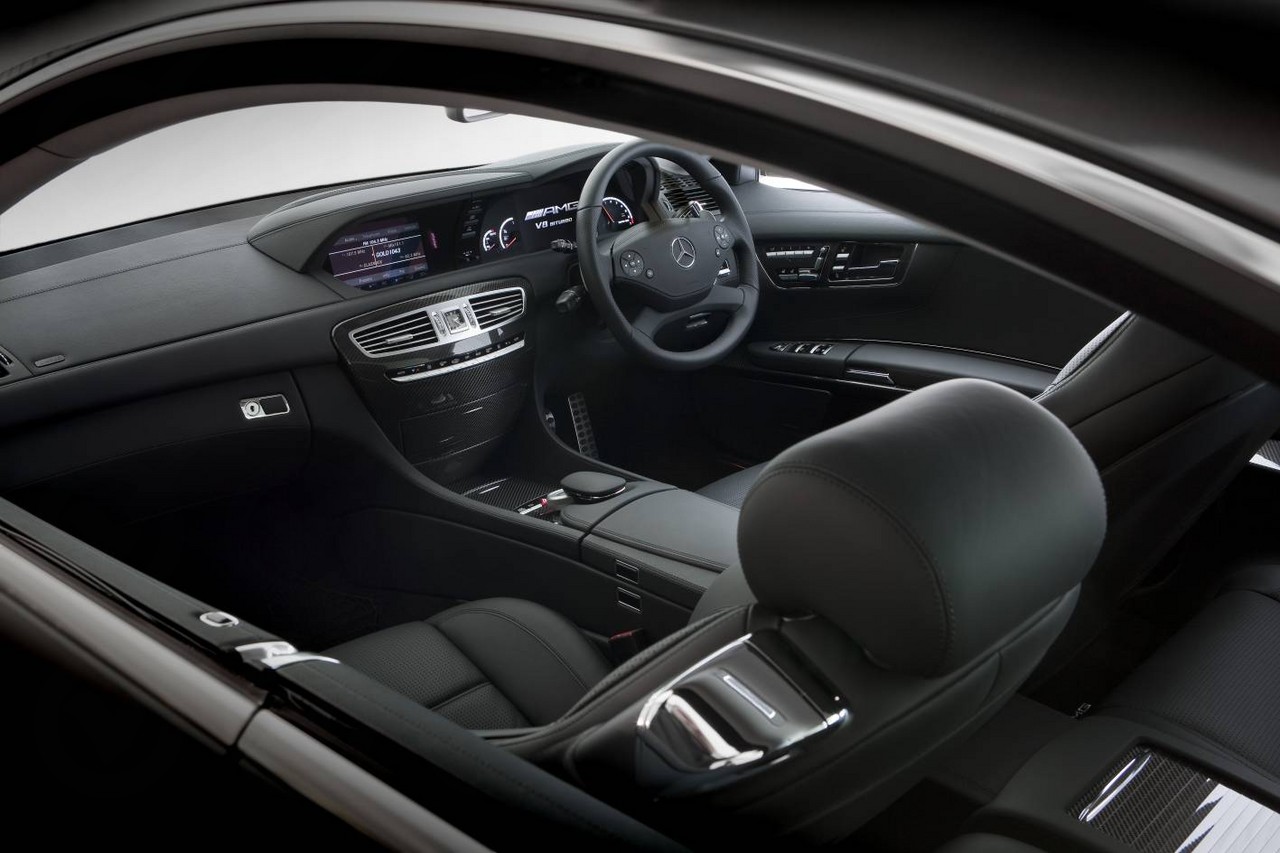

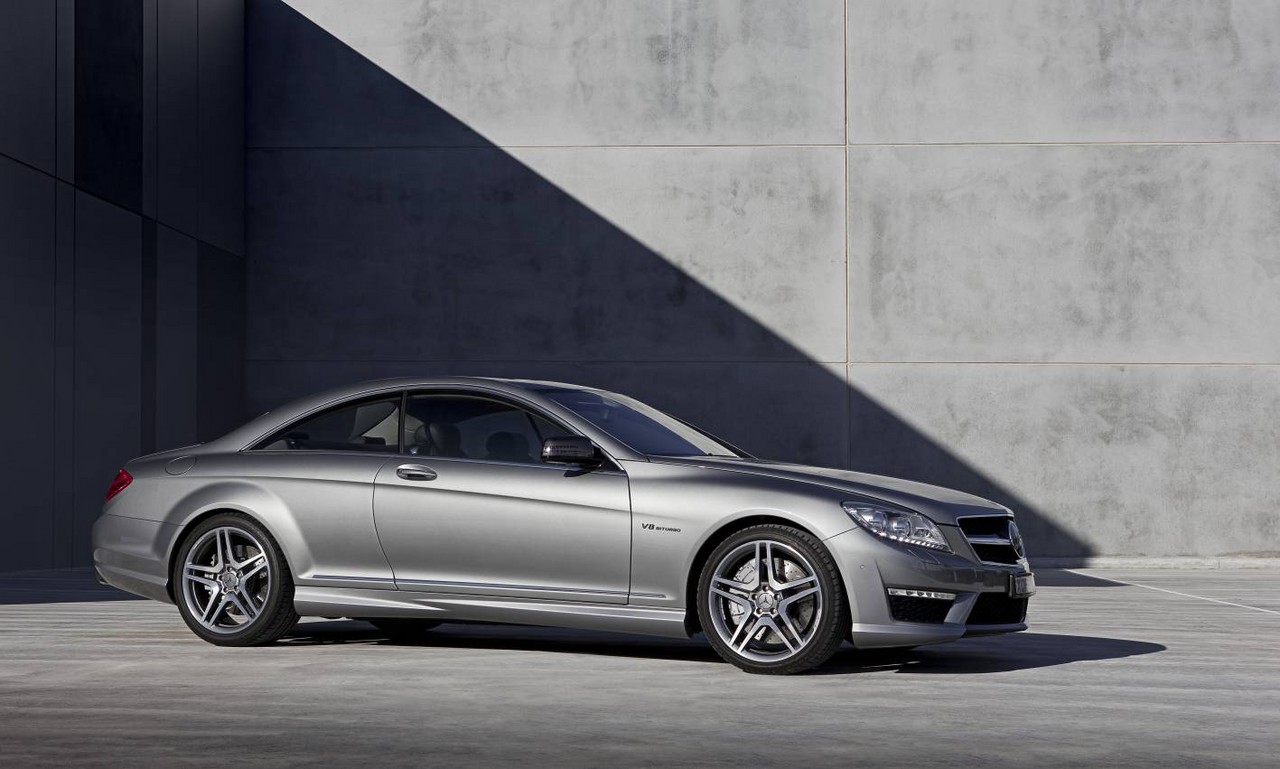

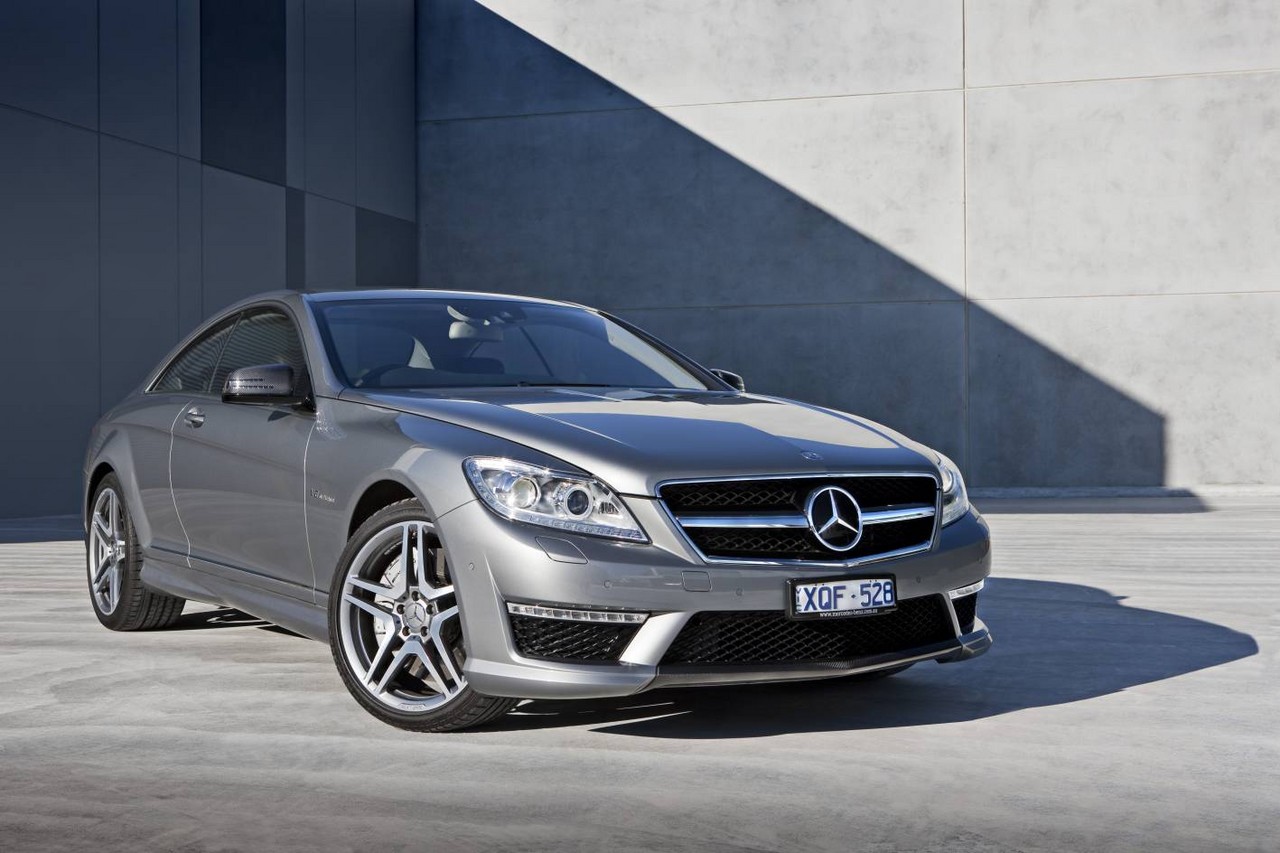

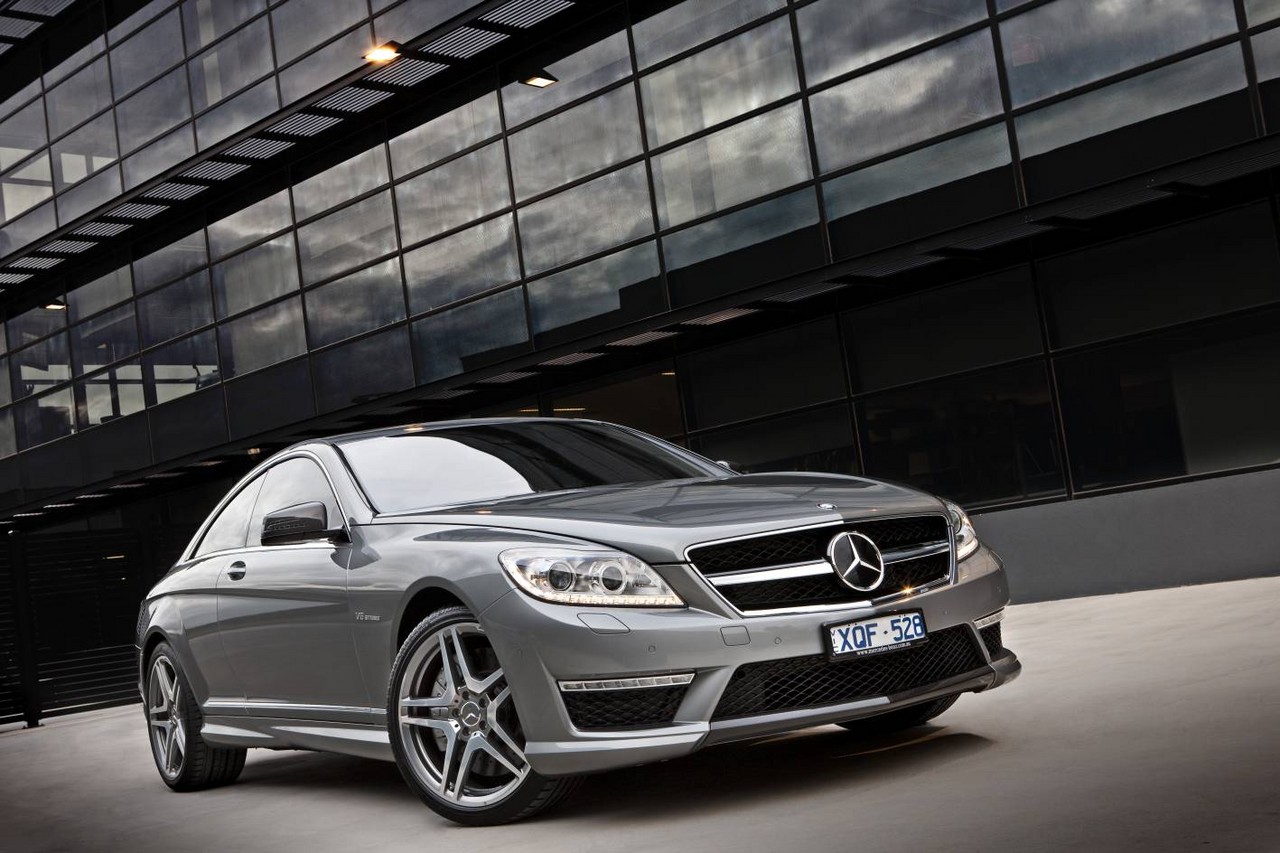

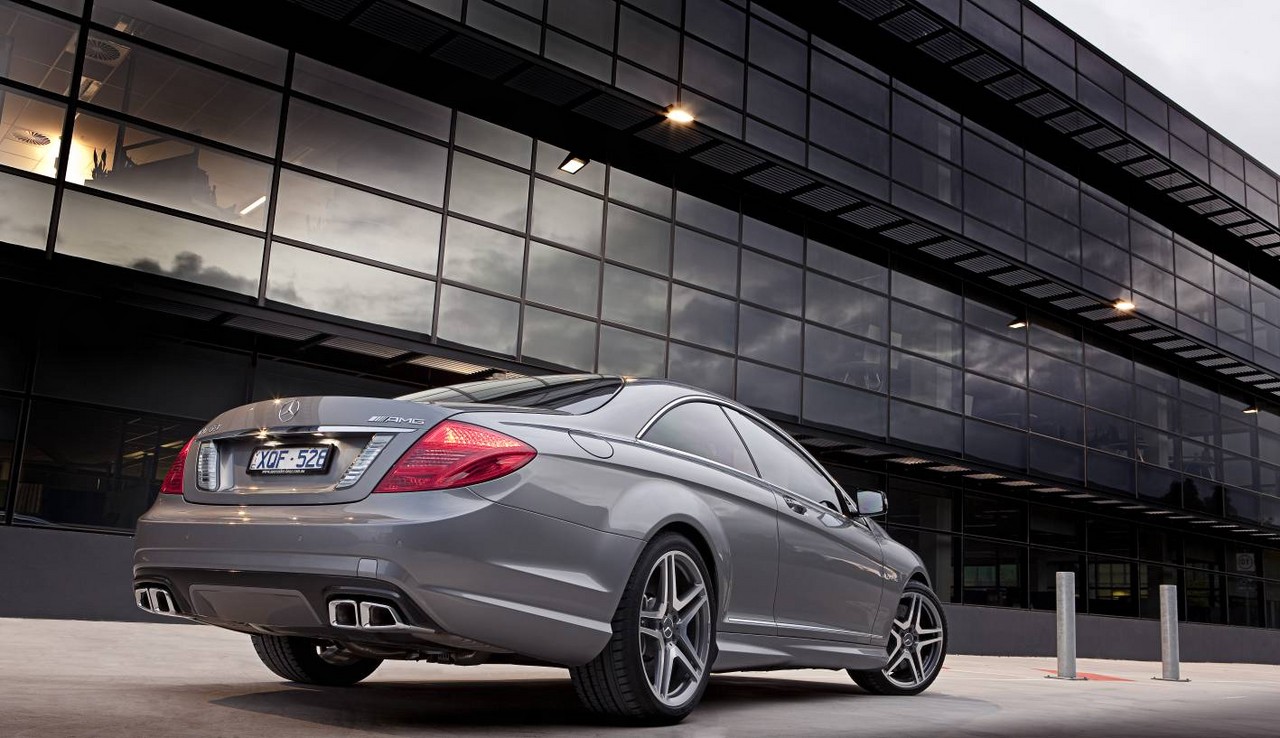

[su_image_carousel source=”media: 25467,25468,25469,25470,25471,25472,25473,25474,25475,25476,25477,25478″ limit=”99″ slides_style=”minimal” controls_style=”light” captions=”yes” dots=”no” link=”lightbox” target=”self” autoplay=”3″ title=”always”]

Overview

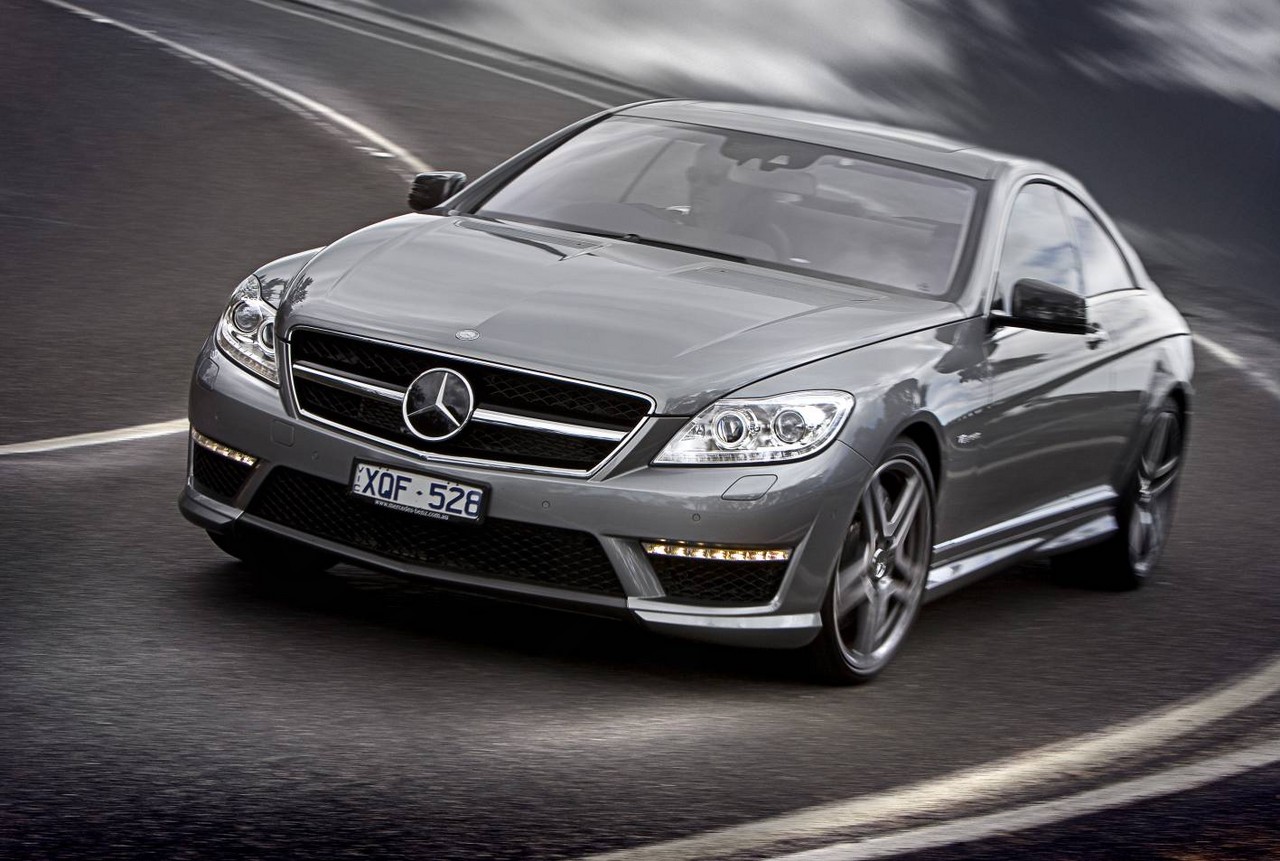

Released in Australia in November 2010, the C216 Series II (C216.II) CL 63 AMG was powered by Mercedes-Benz’s 5.5-litre M157 twin-turbo V8 engine, while the CL 65 AMG engine was revised and fitted with new turbochargers. Visually, the C216.II CL 63 AMG and CL 65 AMG could be identified by their ‘swept-back’ front masks with profiled bonnets, enlarged radiator grilles, larger air intakes and new tail-lights.

Other developments included:

• The introduction of Mercedes-Benz’s ‘Direct-Steer’ variable ratio steering. With Direct-Steer, turns from lock-to-lock were reduced by 25 per cent;
• For the Active Body Control suspension, a cross-wind stabilisation function was introduced which compensated for cross-winds by adjusting wheel load distribution (based on inputs from the yaw and lateral acceleration sensors of the electronic stability control system); and,
• A ‘Torque Vectoring Brake’ function was introduced which could briefly brake the inner rear wheel when cornering for more precise handling.

CL 63 AMG: M157 twin-turbo V8 engine

The M157 V8 engine had an aluminium block with cast-in aluminium-silicon (Silitec) cylinder liners, forged crankshaft made of 38MnS6BY steel alloy (a combination of manganese, sulphur, boron and yttrium) with eight counterweights and rotating in five main bearings, fracture-split forged connecting rods, an aluminium cylinder head, double overhead camshafts (driven by three high-performance chains), variable intake and exhaust camshaft adjustment over a range of 40 degrees via four pivoting actuators, four valves per cylinder and a compression ratio of 10.0:1. Furthermore, the M 157 had a dry weight of 204 kg, maximum engine speed of 6400 rpm and Bosch MED 17.7.3 control unit.

Significantly, the M157 engine had spray-guided direct injection with piezo fuel injectors (operating at 100 to 200 bar on a demand-related basis), a Garrett MGT2260MSL turbocharger for each cylinder bank (welded to the exhaust manifold) and air/water intercooling. For the standard CL 63 AMG, maximum charge pressure was 1.0 bar. For greater fuel efficiency, the M157 engine had an ‘ECO start/stop system’ – which the driver could disable if desired – and multi-spark ignition whereby the spark plugs could fire multiple times during the combustion sequence for more efficient combustion.

With M157 engine, the CL 63 AMG could accelerate from rest to 100 km/h in 4.5 seconds. Over the combined ADR 81/02 test cycle, fuel consumption was 10.6 litres per 100 km.

CL 63 AMG: AMG Speedshift MCT

First introduced in the R230 SL 63 AMG in 2008, the seven-speed ‘AMG Speedshift MCT’ (Multi Clutch Technology) had a compact, wet start-up clutch that operated in an oil bath rather than a conventional torque converter. Furthermore, the AMG Speedshift transmission had selectable driving modes:

• Controlled Efficiency, ‘C’, for softer throttle response, smooth gearshifts, early upshifts to minimise fuel consumption and acceleration from rest in second gear;
• Sport, ‘S’, for greater throttle response, higher engine speeds before upshifting and gearshifts around 25 per cent faster than Comfort. For fast gearshifts under full loads, the engine could partially suppress individual cylinders by interrupting ignition and injection; and,
• Manual, ‘M’, for maximum throttle response and gearshifts 50 per cent faster than Comfort (as quickly as 100 milliseconds).

Other features of the AMG Speedshift transmission included:

• Automatic throttle-blipping on downshifts;
• A double-declutching function for multiple downshifts; and,
• A ‘Race Start’ function.

Compared to the AMG Speedshift 7G-Tronic transmission, the gear ratios for the MCT unit were unchanged, i.e. 4.38 (1st), 2.86 (2nd), 1.92 (3rd), 1.37 (4th), 1.00 (5th), 0.82 (6th) and 0.73 (7th); the final drive ratio, however, was reduced from 3.06 to 2.65.

CL 65 AMG: M275 engine

For the CL 65 AMG, the M275 engine was fitted with new turbochargers which had larger inlet compressor housings and exhaust gas ducts for greater air throughput; maximum charge pressure, however, remained at 1.5 bar. Other changes included new piston rings, a modified oil pump, variable alternator and new engine electronics. Over the combined ADR 81/02 test cycle, fuel consumption was 14.5 litres per 100 km. [su_table responsive=”yes”]

[/su_table]

Safety equipment

Standard safety equipment for the C216.II CL 63 AMG and CL 65 AMG was extended to include:

• Active Lane Keeping Assist which used a camera on the windscreen to detect lane markings. If the vehicle unintentionally departed from its lane, the driver would be warned by short vibrations of the steering wheel;
• Active Blind Spot Assist which was active at speeds above 60 km/h. If the driver attempted to change lanes when a vehicle was detected in the driver’s blind spot, a corrective braking force would be applied to the wheels on one side of the vehicle to return the vehicle to its lane; and,
• The ‘Attention Assist’ drowsiness detection system. Attention Assist monitored 70 different patterns and, once steering behaviour was detected that typically indicated the onset of drowsiness, a warning signal would sound and a message would appear in the instrument cluster.

Furthermore, Night View Assist was upgraded to highlight pedestrians to make them more noticeable (‘Night View Assist Plus’).

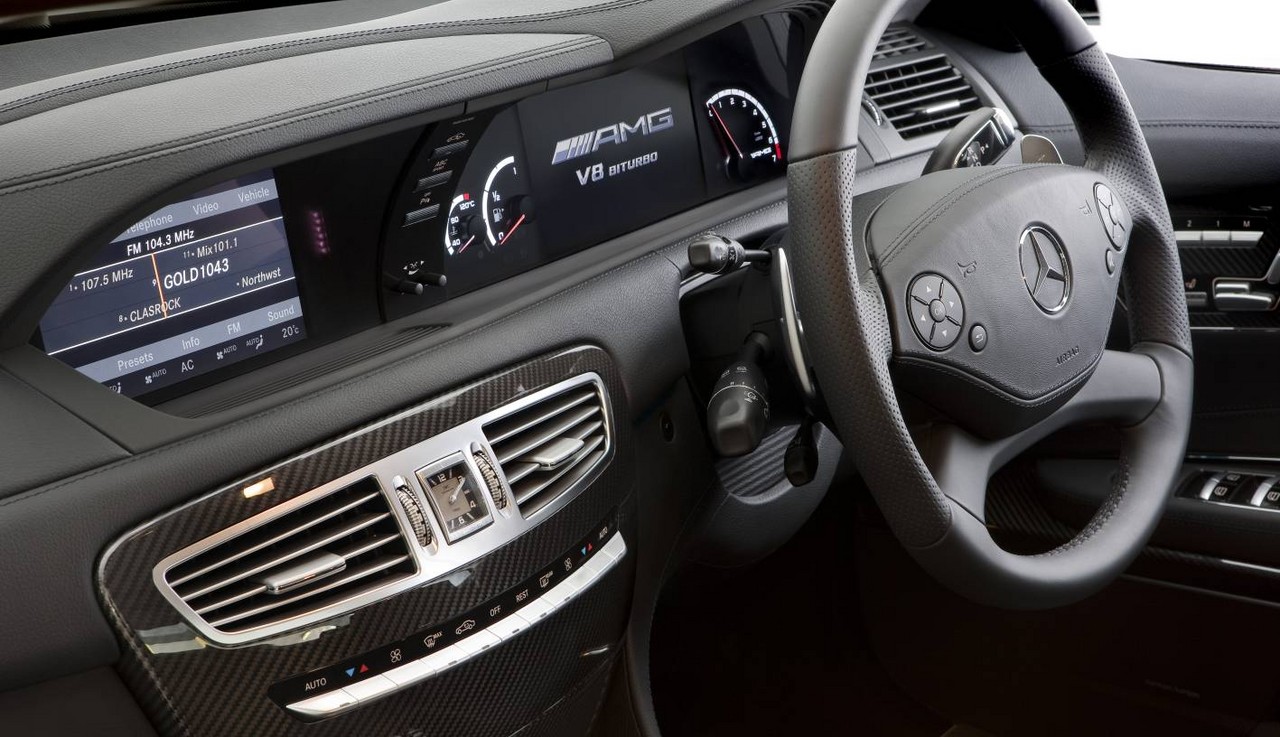

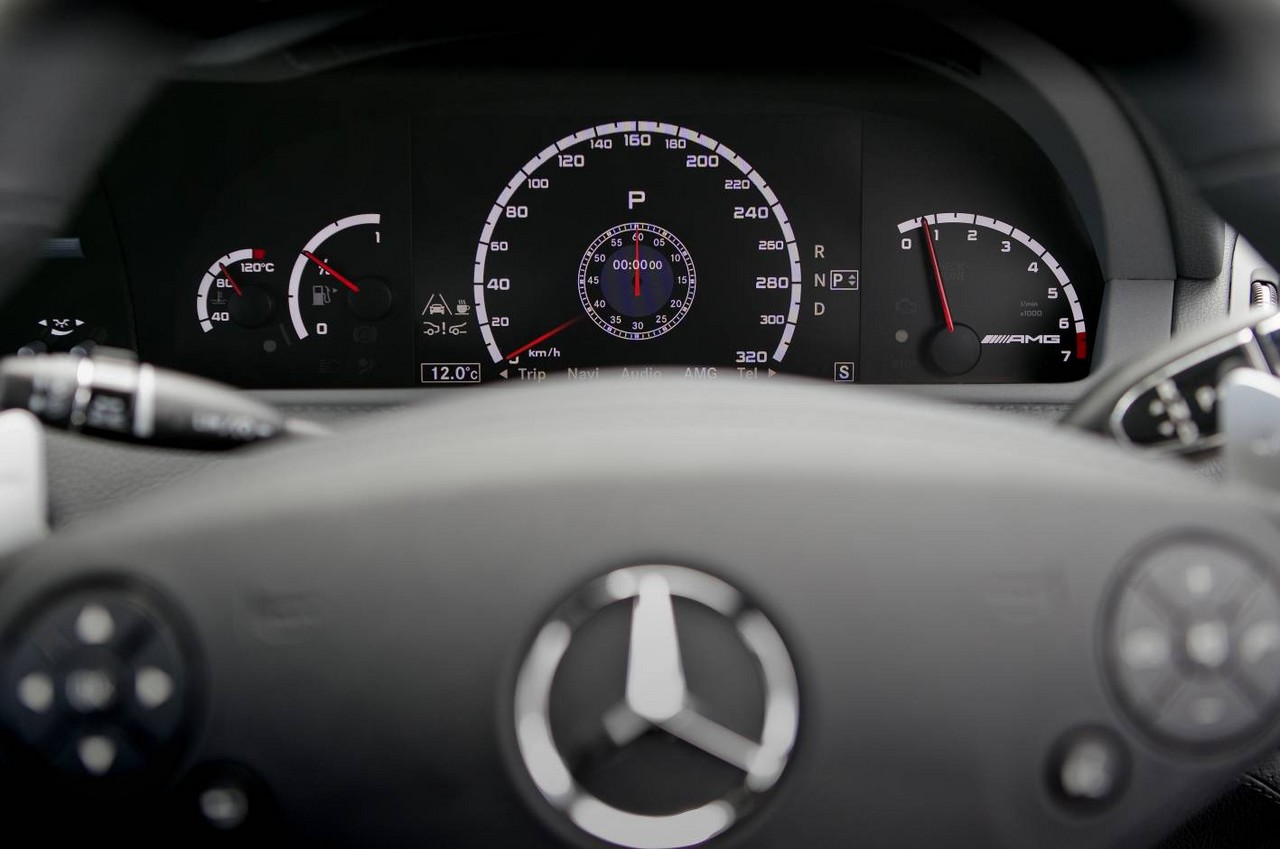

Features: CL 63 AMG and CL 65 AMG

Standard features for the CL 63 AMG and CL 65 AMG were extended to include ‘Splitview’ central monitor (which could display different content to the driver and front passenger from the same monitor), USB and SD card interfaces, and a 7.2 GB hard-drive music register. The CL 65 AMG was also fitted with Alcantara headlining.
